Key takeaways
- Attached lean-tos (7–12 ft wide) cut utility trenching and night heat loss, though they require stepped ledger flashing against siding rot and trigger residential permits.
- Size roofs to local ground snow load (psf), not USDA zones: gothic arches shed snow on 4-ft centers, whereas round quonset hoops need center winter props or seasonal film stripping.
- Use UGA Extension layout math: 6-in-12 (~27°) pitch, 6–7 ft eaves for tall trellises, 2–3 ft single-reach benches, and two-thirds bench space to one-third aisles.
- Glazing R-value and perimeter foam drive winter heating bills: 8 mm twin-wall polycarbonate (R-2.00) and double air-inflated poly (R-1.43) slash losses over single poly (R-0.83) or single glass (R-0.91).
- Shipping containers hide high retrofit bills: seal pesticide-treated marine plywood floors, weld headers around glazing cutouts, and spray 1.5–2 in. closed-cell foam to stop 'container rain'.
Quick answer: Choosing a greenhouse starts with attachment and weather loads. Attached lean-tos (7–12 ft wide) share household power, water, and wall warmth, while freestanding gable A-frames maximize light and headroom. Where wet snow reaches >= 25 psf, a gothic arch with 1.66–1.90 in. 14-gauge bows on 4-ft centers sheds snow where round hoops buckle. Shipping containers provide tough security, yet cutting steel headers, sealing pesticide-treated floors, and spraying closed-cell foam drives costs to $36–$85/sq ft versus $5–$14/sq ft for double-poly tunnels.
Why One Greenhouse Style Rarely Fits Two Different Sites
UGA Cooperative Extension brackets a hobby greenhouse from a sub-$100 polyethylene frame knocked together in an afternoon up to a $6,000+ prefabricated glass or polycarbonate house. Commercial and DIY container conversions push well past $13,000. Between those poles sit five structural families: the attached lean-to, the freestanding gable A-frame, the peaked gothic arch, the round quonset hoop, and the converted steel shipping container.
Catalog photos hide the failure modes. A round hoop bought for $1,400 collapses under its first 14-inch wet spring snowstorm if the bows sit 6 ft apart without purlins. An attached lean-to rots house sheathing behind an un-flashed ledger board, and a bare steel container drips cold condensation like indoor rain while baking seedlings on a sunny afternoon. Comparing geometry, structural gauges, glazing R-values, and true installed square-foot costs before pouring footings prevents rebuilding twice.
Attached Lean-To vs. Freestanding Structures: Code, Heat & Utility Trade-Offs
Your first fork is structural attachment. An attached greenhouse uses an existing house, barn, or garage wall for one side (a lean-to), or butts one gable end against the home (an attached even-span). A freestanding greenhouse stands clear in the yard with four exposed walls and full overhead sky.
Attached lean-to: convenience vs. ledger flashing and permits
Per UGA Extension Bulletin 910, a standard lean-to holds one or two bench rows across a 7 to 12 ft width and extends along whatever length of sunny wall you have. Placing it steps from a back door saves trenching water lines and 120V/240V power runs, while a brick or masonry house wall absorbs daytime solar warmth and buffers night temperature swings. For seed starting and winter kitchen greens like lettuce and spinach, three glazed faces lose far less heat at night than four.
Two hidden lean-to hazards: First, high greenhouse humidity and condensation attack wood siding unless you cut back cladding, install stepped metal flashing under the house siding over a waterproof membrane, and keep the greenhouse slab sloped away from the house foundation. Second, bolting any roof to a dwelling usually triggers full residential building permits, frost-depth footings matching the home (to prevent differential heave), and tempered safety glass near doors, whereas detached structures under 200 sq ft qualify as permit-exempt accessory buildings in many US counties.
Freestanding: full-day light and room to expand
A freestanding greenhouse collects sun from east, south, and west without the house casting a half-day shadow. That extra light makes a decisive difference when fruiting high-light crops like tomatoes, peppers, and cucumbers during short winter days. You also gain freedom to orient the ridge accurately, control pests cleanly away from house windows, and lengthen the structure later—trading higher perimeter heat loss and utility trenching for production capacity. Compare dedicated four-season cold builds in our four-season greenhouse design guide and our breakdown of greenhouse kits and realistic costs.

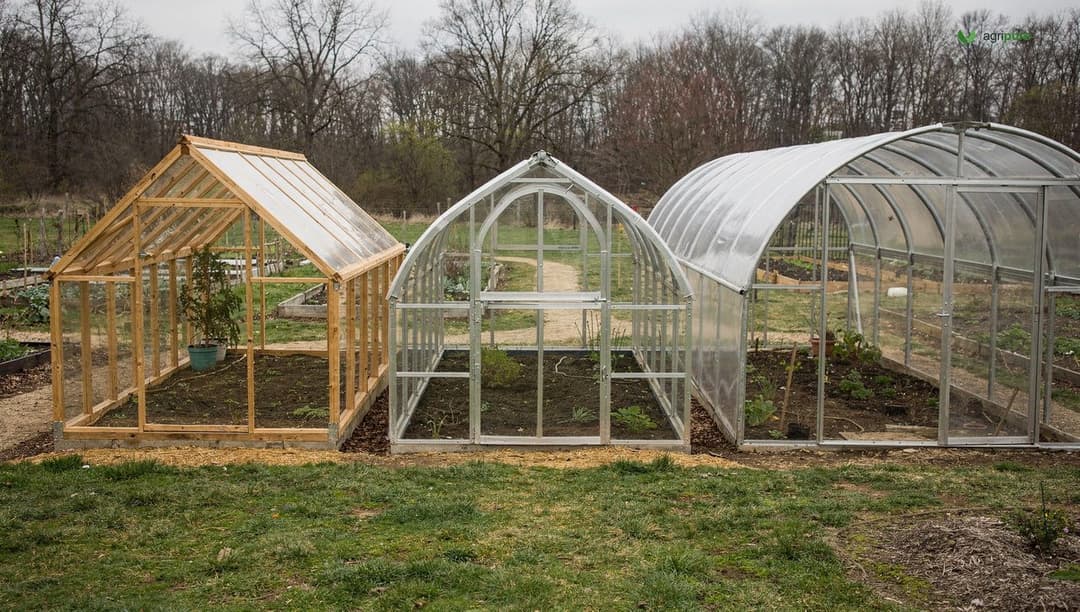

Roof Geometry, Ground Snow Load & Headroom Compared
Once you pick attached or freestanding, roof geometry determines how well the frame sheds wet snow, resists wind uplift, and fits tall trellised crops. Structural guidelines from the National Greenhouse Manufacturers Association (NGMA) and ASCE 7 evaluate roofs by ground snow load (psf) and 3-second wind gust speed (mph)—never by USDA plant hardiness zones, since wet coastal or mountain snow falls heavily even in milder winter temperature zones.
Structural Style Comparison: Geometry, Snow-Shedding, Light & Installed US Cost
Greenhouse Style | Typical Width & Headroom | Snow & Wind Performance | Light & Crop Fit | Typical Installed Cost (US) |
|---|---|---|---|---|
Attached Lean-To | 7–12 ft wide; 5–6 ft outer eave | Sheltered back wall; needs >= 4:12 pitch | 1–3 glazed sides; herbs, greens, Meyer lemon | $18–$40/ft² ($2,500–$8,000+) |
Freestanding Gable (A-Frame) | 8–24 ft wide; 6–7 ft straight eaves | 6:12 (~27°) pitch sheds snow; holds glass/polycarb | 4-side sun; fits tall tomatoes | $18–$45/ft² ($2,800–$12,000+) |
Gothic Arch | 12–30 ft wide; tall side clearance | Pointed apex sheds >= 25–40 psf wet snow | High winter sun capture + side headroom | $8–$18/ft² poly ($1,800–$5,500) |
Quonset / Round Hoop | 10–36 ft wide; low curved edges | Crown holds snow; brace or strip >15–20 psf | $5–$14/ft² ($600–$3,200 DIY) | |
20-ft Container (160 sq ft) | 8 ft wide × 8.5–9.5 ft high-cube | Stormproof once cutouts get welded headers | Needs skylights or LED racks | $36–$85/ft² ($5,800–$13,500+) |
Steel pipe gauge, bow spacing, and anchoring rules
Hardware-store 1/2-inch or 3/4-inch PVC flexes in wind and turns brittle in two summers. University of Arkansas Extension and USDA NRCS high-tunnel standards specify galvanized steel tubing: 1.315 in. OD (16-gauge) for narrow 10–14 ft backyard spans, stepping up to 1.66–1.90 in. OD (14-gauge) bows for 20–30 ft spans or heavy snow.
Space bows 4 ft on-center rather than 6 ft wherever snow exceeds 20–25 psf, tie arches with a continuous ridge pole and purlins, and install diagonal wind braces at every corner. Anchor permanent frames to piers poured below frost line with >= 2,500 PSI concrete (Oklahoma State HLA-6700), or drive ground posts 30–36 in. deep against wind uplift. See our snow and wind bracing guide, hoop house anchoring guide, and DIY hoop house build.
UGA interior bench & roof-pitch ergonomics
Every extension engineer warns that greenhouses fill within one season. UGA B910 advises sizing 25%–50% larger than initial plans, giving two-thirds of floor space to benches and one-third to aisles. Keep wall benches 2–3 ft wide, center benches up to 6 ft, standing paths 18–19 in., and wheelbarrow aisles 24–30 in. Use 5 ft eaves for bench greens or 6–7 ft eaves for tall vines, with a 6-in-12 (~27°) pitch (ridge height = eave height + width/4). Pair floors with raised beds and drip irrigation.
Site Selection, Solar Orientation & the 15 mph Wind Penalty
Even an R-2.5 glazed greenhouse underperforms if parked in winter tree shade or blasted by prevailing northwest gales. Oklahoma State Extension recommends a site receiving at least 5 to 6 hours of direct unobstructed winter sunlight, staying clear of tall evergreens or buildings by at least 2.5× the height of the obstruction, on level ground or a gentle 1% to 5% slope for surface drainage.

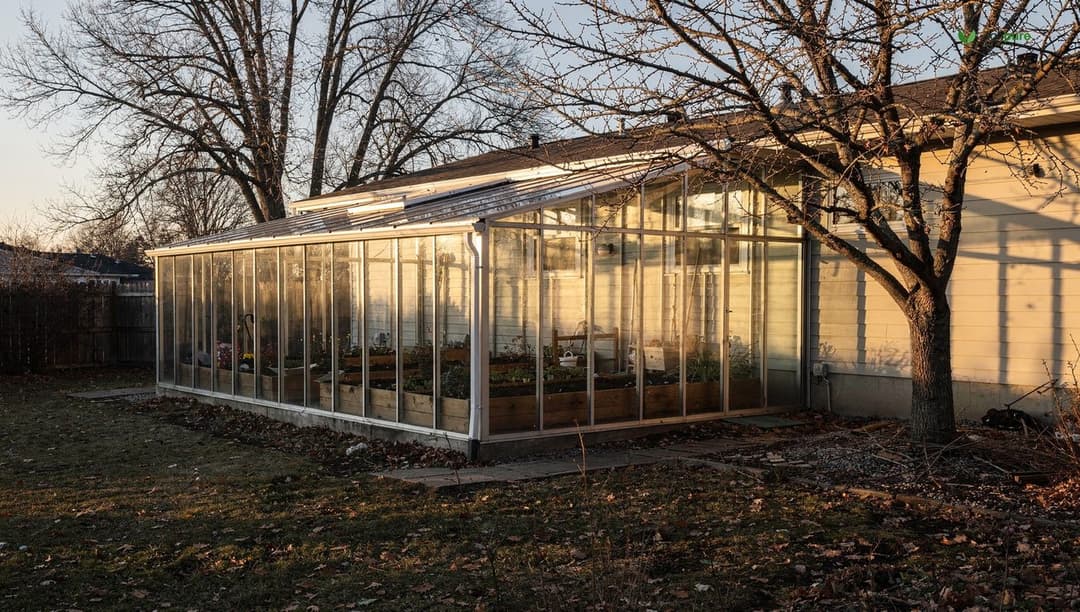

UGA Bulletin 910 ranks exposure around a home clearly: south or southeast captures the strongest November-to-February sun, east ranks second (warming plants early after cold nights), southwest and west risk afternoon overheating, and the north side is the worst spot on the property. Deciduous trees planted to the southwest can offer natural July afternoon shade while dropping leaves before winter, provided limbs stay far enough away not to punch through glazing during ice storms. Use our plant finder by zone and local frost dates tool to check how many winter weeks your chosen crops actually spend under cover.
- 3-Season Production (North–South Ridge): Both UGA and Oklahoma State Extension advise running the long ridge north to south for spring-through-fall growing so rafter and gutter shadows sweep continuously across benches from morning to evening rather than stalling over one row.
- Deep-Winter Passive Solar (East–West Ridge): University of Minnesota Extension flips the axis for unheated or lightly heated northern winter houses. Orient the long axis east to west, glaze a steeply sloped south wall to catch low December sun head-on, and replace the north wall with an insulated wood-framed wall lined with reflective white panels plus water barrels or rock thermal mass. Explore full angles in our passive solar latitude design guide, budget passive solar greenhouse plan, thermal mass heat storage guide, and cold-climate greenhouse siting guide.
- The 15 mph Wind Penalty: University of Alaska Fairbanks Extension documents that greenhouse heating requirements double as wind speed increases from 0 to 15 mph through convective stripping and air infiltration. Placing a freestanding house in the lee of a solid fence, evergreen windbreak (planted far enough north/west not to shade winter sun), or barn cuts winter fuel demand dramatically.
Frame Materials & Glazing Envelopes: Heat Loss Math That Actually Moves Bills
Heating typically consumes 75%+ of a year-round greenhouse's operating budget, and two components decide how fast heat escapes: the frame bars and the glazing skin. Comparing them side by side clarifies why a cheap bare-metal kit with single plastic costs far more over five winters than an insulated polycarbonate or double-poly envelope.
Frame Material Engineering: Thermal Bridging, Moisture Upkeep & Foundation Needs
Frame Material | Thermal Bridging | Humidity & Rot / Corrosion Care | Light Blockage & Span Strength | Typical Lifespan |
|---|---|---|---|---|
Timber (Cedar / Treated) | Lowest — resists heat transfer | Stain/paint every 3–5 yrs; isolate from soil | Wider rafters cast slightly more shade | 15–25+ yrs |
Extruded Aluminum | High unless thermal-break | Rust-free in 85% RH; clean tracks | Slimmest bars for max light; rigid channels | 25–40+ yrs |
Galvanized Steel Tube | High — frost bridges on cold bows | Coat cut ends with cold-galvanizing zinc | Top snow/wind strength for 20–36 ft spans | 20–30+ yrs |
Container Steel + Foam | Neutralized by 1.5–2 in. foam | Zero rot; seal bare steel scratches fast | Needs welded 2×2 in. headers around cutouts | 25–35+ yrs |
When picking glazing, compare R-value (higher holds more heat), PAR light transmission (400–700 nm plant sunlight), and replacement cycle. UGA B792 measures full-assembly R-values, while Rutgers Cooperative Extension proved on a campus retrofit that swapping slipped lapped glass on sound wood bars for 8 mm twin-wall polycarbonate cut heating energy use by roughly 30%.
Glazing Envelope Performance (UGA Extension B792 & UAF / Rutgers Field Benchmarks)
Glazing Assembly | R-Value | PAR Light | Lifespan | Key Trade-Off |
|---|---|---|---|---|
Single 6-mil UV Poly | R-0.83 | 86%–90% | 3–4 yrs | Cheapest skin; bleeds night radiant heat unless IR-film is used (+20%) |
Double Air-Inflated Poly | R-1.43 | 78%–85% | 4–5 yrs | Small blower inflates air cushion, cutting heat loss ~40% vs. single |
Single Glass (3 mm) | R-0.91 | 88%–92% | 30+ yrs | Maximum clarity; heavy framing, hail risk, leaky on lapped panes |
Twin-Wall Polycarb (6–8 mm) | R-1.70–2.00 | 75%–82% | 10–15+ yrs | Hail-proof, light; face UV-protected exterior side outward |
Multi-Wall (16 mm) / Double IGU | R-2.00–3.80 | 65%–78% | 15–25+ yrs | Cold-climate leader for strawberries & winter greens |
Seal where glazing meets ground: UGA B792 lists uninsulated perimeter loss at 0.8 Btu/ft·°F·hr, cut in half to 0.4 Btu/ft·°F·hr by burying 1–2 in. XPS foam board 18–24 in. deep. Weather-strip doors, control summer heat via greenhouse shading and whitewash, or compare walipini vs. above-ground builds, earth-bermed sunken houses, and polytunnel vs. greenhouse.
Shipping Container Greenhouses: Structural Cuts, Floor Toxicity & True Costs
Used 20-ft ($1,500–$3,500) or 40-ft high-cube shipping containers resist theft, rodents, and 100 mph winds, yet three structural and chemical pitfalls catch casual builders off guard.
- Seal pesticide-treated plywood floors: Ocean cargo containers ship with 1-1/8 in. marine hardwood decks treated with persistent insecticides and fungicides. Never water edibles over bare decking—strip the planks or coat them completely with food-safe epoxy and waterproof trays.
- Weld headers around glazing cuts: Corrugated sidewalls carry structural roof loads. Cutting a south wall or roof skylight requires welding 2 × 2 in. square steel headers around every opening to mount polycarbonate channels with thermal-expansion neoprene washers.
- Stop 'container rain' and budget realistically: Bare steel bleeds heat and drips condensation onto foliage unless insulated with 1.5–2 in. closed-cell polyurethane foam (R-6 to R-7/in) under white FRP wallboards. Counting the box, steel headers, polycarbonate glazing, foam, fans, and wiring, a 160 sq ft conversion runs $5,800–$13,500 DIY ($36–$85/sq ft)—often making a $2,500 container headhouse beside a $3,500 Gothic tunnel better value on a modern homestead.
Once built, pair your structure with greenhouse climate control, solar greenhouse fans, off-grid summer cooling, or cold-frame season extension for basil, chives, thyme, rosemary, radishes, and carrots.
