Drip irrigation when the grid is unreliable — a Pakistan reality manual

The single most common reason a smallholder drip system fails in Pakistan is not the heat, the salt, or the dust. It is the assumption that drip needs a pump, and that a pump needs reliable grid power. Neither is true. A correctly designed gravity-fed drip line will run a young orchard on nothing more than a tank raised a metre or two above the field — if, and only if, you respect the one number that governs the whole system: emitter operating pressure. Get that right and the grid becomes optional. Get it wrong and no amount of pumping will save you.

The number that decides everything: head pressure

Every drip emitter has a rated flow at a rated pressure. Standard non-compensating emitters are designed around roughly 1 bar (about 10 metres of water head, ~14.5 psi). A pressure-compensating (PC) emitter is the smallholder’s friend here, because it holds a near-constant flow across a wide pressure band — typically delivering its rated rate anywhere from about 0.5 to 4 bar. The practical consequence: with PC emitters you do not need grid pressure, you need height.

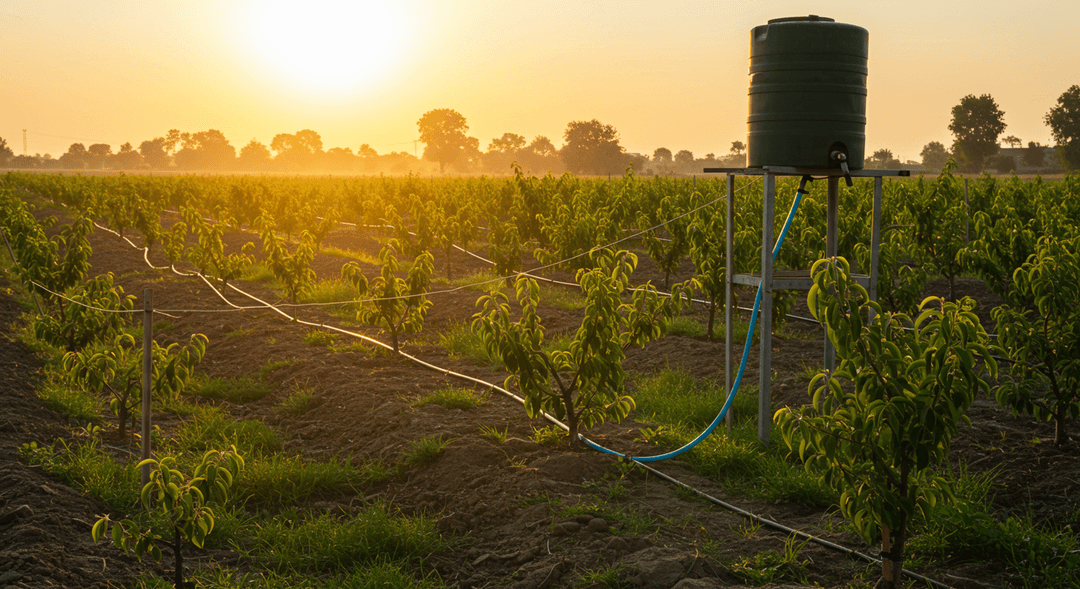

Because water gains roughly 1 bar of pressure for every 10 metres of vertical drop, a tank raised even 1–2 metres delivers 0.1–0.2 bar — marginal for standard emitters but enough to bring many low-pressure PC and gravity-rated emitters into their working band. This is why the serious gravity systems put the tank on a 2–3 metre stand or a rooftop: every metre of height is free, permanent pressure that never depends on WAPDA.

Sizing the tank to the trees, not the field

A young fruit tree in the Punjab summer wants on the order of 20–40 litres per week in its first two years, climbing toward 100–150 litres per week for a mature tree in peak demand. Size the tank to a few days of supply for the trees you actually have, not the hectare you imagine. A 1,000-litre IBC tote on a stand will run two dozen young trees comfortably between refills. The discipline of gravity drip is that it forces you to irrigate the root zone, not the whole field — which is the entire point of drip in the first place.

Flood irrigation in Punjab cotton-wheat systems routinely applies the equivalent of 12,000 m³ per hectare per year; well-run drip delivers comparable crops on roughly half that. For a smallholder buying water by the tanker or pumping it by the litre, that saving is the difference between viable and not.

Filtration is not optional

The fastest way to kill a drip system is to feed it unfiltered canal water. Emitters clog from two directions: physical particles (silt, sand, algae) and chemical precipitation (the calcium and salts common in Pakistani groundwater). A basic 120–150 mesh screen or disc filter at the tank outlet stops the particles; for hard or saline water, periodic acid flushing of the lines keeps scale from sealing the emitters shut. Saline canal water clogs emitters far faster than filtered tubewell water — if your only source is brackish, budget for more frequent line flushing and choose the largest-orifice PC emitters you can, since they tolerate fouling longest.

When to add a solar pump

Gravity covers a young, compact planting. Once the system grows past what a tank-on-a-stand can pressurise — a larger field, longer lateral runs, or trees on a rise above the water source — a small solar-direct pump is the natural next step, not a grid connection. Solar-pumped drip has been field-validated across Sindh and Balochistan; the key ratio is matching panel wattage to the flow and head you actually need, which for a smallholder orchard is usually a modest panel and a DC pump, not an industrial array. The design philosophy stays the same: pressure first, then flow, then automation — in that order.

The grid, in this design, is a convenience you have engineered yourself out of needing. That is the whole manual: raise the tank, choose pressure-compensating emitters, filter the water, and let gravity do the work the grid keeps refusing to.
