Key takeaways
Powering your shed with solar is a practical and rewarding project. Understanding load requirements and proper wiring ensures a safe and efficient off-grid setup.
- 3 realistic tiers cover almost every shed: LED-only (20-40 W), lights + tools (100-200 W), and lights + tools + mini-fridge (200-400 W).
- 12 V keeps the bill of materials cheap up to 300 W; above that, switch to 24 V or 48 V to halve the copper.
- An MPPT charge controller, a fused battery bank, and a pure-sine inverter are the safety-critical parts.
- NEC Article 690 governs PV grounding: 8-foot ground rod, equipment grounding conductor sized to the OCPD.
- A detached shed with more than one circuit needs a small subpanel and its own grounding electrode.

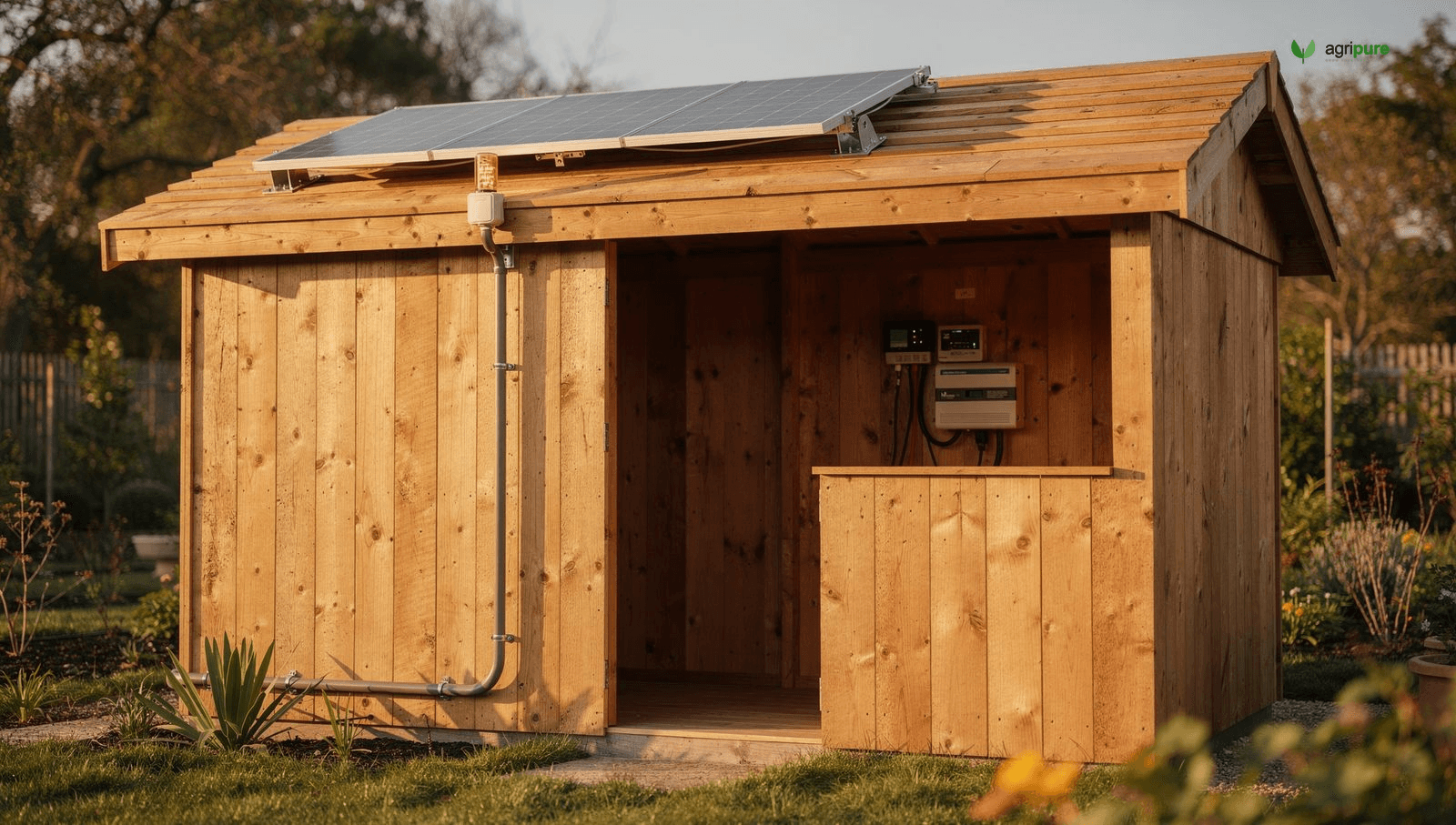

A shed is the smallest realistic solar build, which is why it is also the best one to learn on. Loads are modest, permits are usually not required for a self-contained low-voltage DC system, and mistakes cost a Saturday morning instead of a renovation. This guide walks 3 realistic load tiers, a full bill of materials for each, a wiring schematic, and a plain-English safety section grounded in NEC Article 690. If you want the broader context, see our off-grid kit guide and how solar panels work. For step-up DIY beyond the shed, our DIY solar primer covers what is safe to do yourself.
Start with the load, not the panel
Every shed solar project starts the same way: list what you actually plug in, multiply by hours of use per day, and add a 20% safety margin for wire and inverter losses. That number, in watt-hours per day, sizes the panel and battery. Sourcing a 400 W kit because it was on sale and then discovering it cannot run your mini fridge through a 3-day cloud is the classic shed mistake.
Load | Watts (typical) | Hours / day | Wh / day |
|---|---|---|---|
4 × LED tube lights | 40 | 4 | 160 |
Phone and laptop charging | 30 | 3 | 90 |
Bluetooth radio | 15 | 4 | 60 |
Cordless drill charger | 30 | 0.5 | 15 |
Mini fridge (energy-star) | 60 avg | 24 | 1,440 |
The 20% margin: no shed system is 100% efficient. Wires, the inverter, and the charge controller all eat a few percent each. Take your raw watt-hour total, multiply by 1.2, and size from that.
The three realistic tiers
Those load lists sort almost every shed into 3 tiers. Below are the panel, battery, and inverter sizes for each, with the bill of materials.
Tier | Daily load | Panel | Battery | Inverter |
|---|---|---|---|---|
LED lights + phone | ~250 Wh | 20-40 W | 20 Ah / 12 V | None (DC only) |
Lights + power tools | ~600 Wh | 100-200 W | 50-100 Ah / 12 V | 300-600 W pure sine |
Lights + tools + mini fridge | ~2,200 Wh | 200-400 W | 100-200 Ah / 12 V or 100 Ah / 24 V LiFePO4 | 600-1,000 W pure sine |

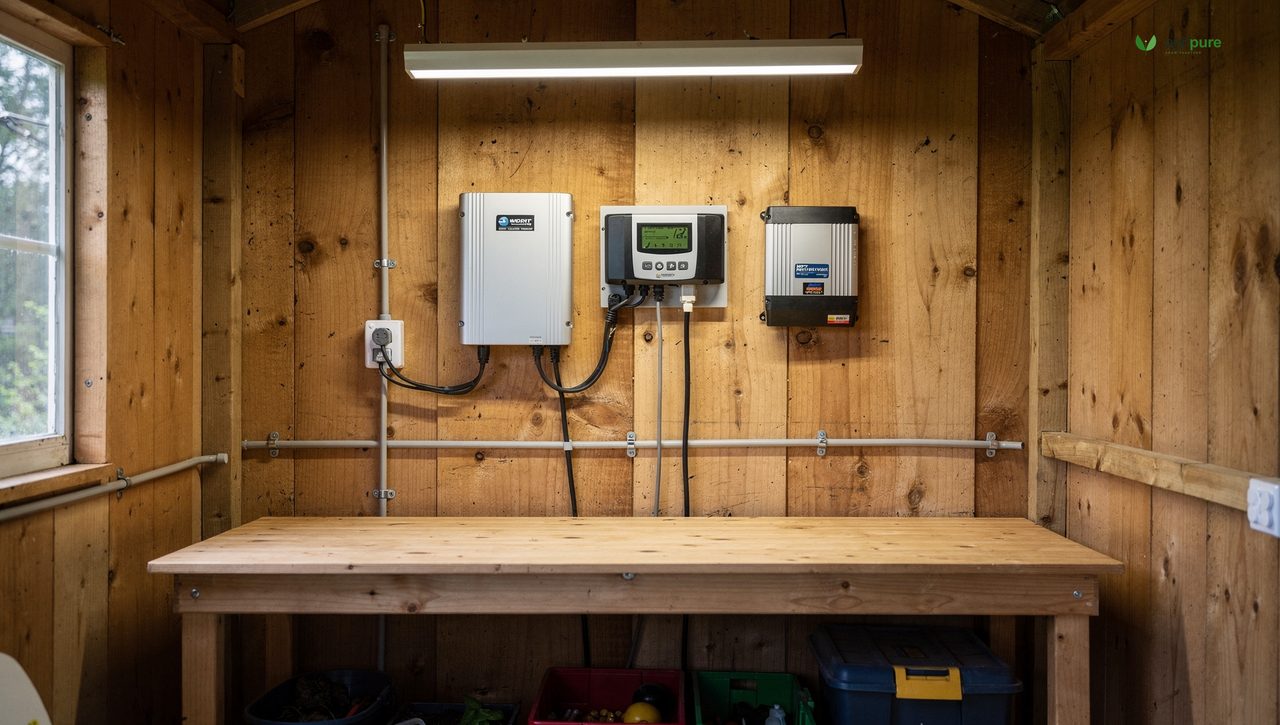

Bill of materials, all three tiers
Those panel-and-battery numbers are the headline cost. The balance of system below — wire, fuses, mounts, conduit — is what most shed builders under-budget.
Part | LED tier | Tools tier | Fridge tier |
|---|---|---|---|
Solar panel(s) | 1 × 30 W | 1 × 200 W | 2 × 200 W |
Charge controller | 10 A PWM | 20 A MPPT | 40 A MPPT |
Battery | 20 Ah AGM 12 V | 100 Ah LiFePO4 12 V | 100 Ah LiFePO4 24 V |
Inverter | — | 600 W pure sine | 1,000 W pure sine |
DC fuses | 10 A inline | 30 A T-class | 60 A T-class |
PV wire | 10 ft #14 AWG | 20 ft #10 AWG | 30 ft #8 AWG |
Mount | Single Z-bracket | Z-bracket pair | Tilted roof rail |
Ground rod | Optional | Required (8 ft) | Required (8 ft) |
Wiring schematic and how it flows

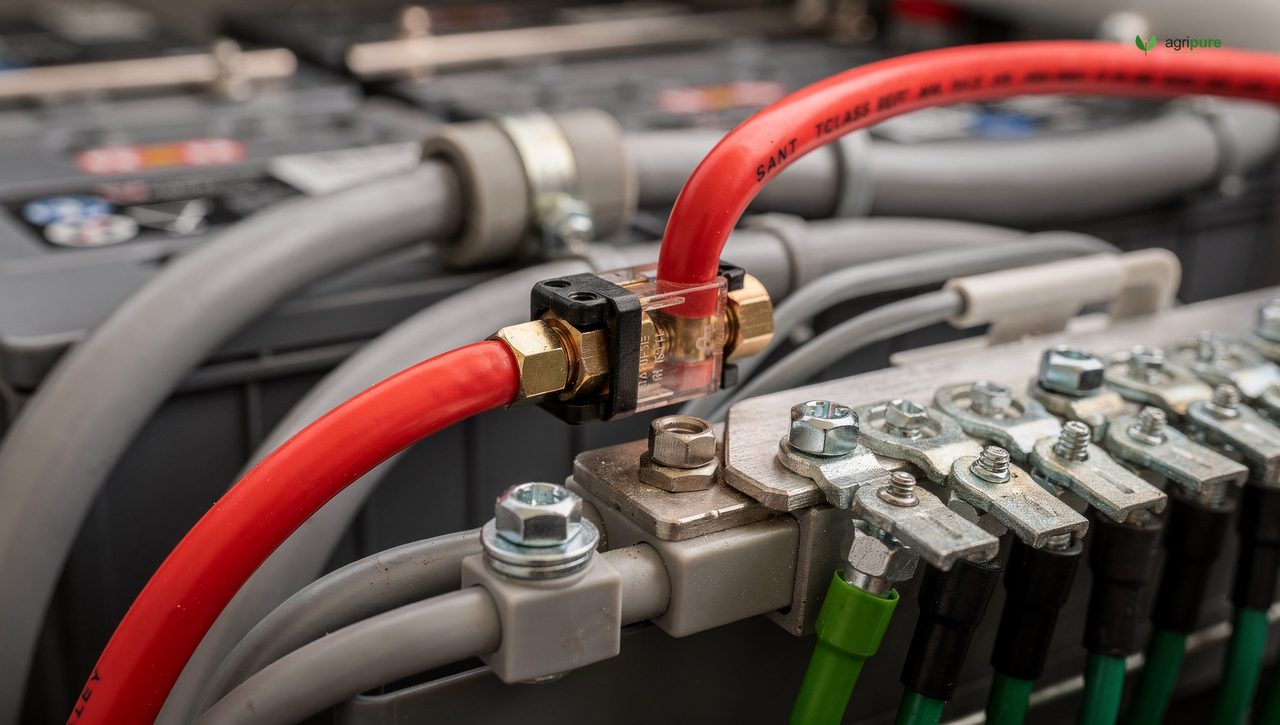

That bill of materials wires up the same way regardless of tier: panel → charge controller → battery → loads (and/or inverter → AC loads). The fuse on the battery is the single most important component for fire safety; if you skip exactly one part of this list, do not let it be that.
Safety: NEC Article 690 in plain English
That schematic only works if the grounding does. NEC Article 690 governs all PV installations in the US. The headline rules below apply to any shed system with panels over a few amps; tiny single-panel lighting kits fall under accessory-use exceptions in many jurisdictions, but the safe defaults are the same.
Rule | What it means for a shed |
|---|---|
Grounding electrode | Drive an 8-foot copper ground rod at the shed; bond the panel frame, charge controller, and battery negative to it |
Equipment grounding conductor (EGC) | Size to the OCPD per NEC Table 250.122; never smaller than 6 AWG unprotected |
Main bonding jumper | Connect EGC to neutral at exactly 1 point in the system, never two |
Outdoor conduit | Non-metallic (PVC or HDPE) outdoors; EMT indoors |
Subpanel required | Any detached shed with more than 1 circuit needs its own subpanel and grounding system |
Functionally grounded inverters: modern transformerless inverters use a functionally grounded design that eliminates the need for a separate DC grounding system. Most quality LiFePO4-paired hybrid inverters fall in this category — check the datasheet.
Permits, codes, and when to call an electrician
That NEC language sounds heavier than the reality. Most US jurisdictions do not require a permit for a low-voltage, battery-only DC system that does not interconnect with the house or grid. The line gets crossed when you (a) run AC wiring from the inverter into fixed shed outlets, (b) tie the shed’s electrical back to the house, or (c) install over a certain DC voltage threshold. Below is the rough rule of thumb; check your local AHJ before you swipe the card.
What you are building | Permit likely? | Call an electrician? |
|---|---|---|
DC-only LED kit, plug-in inverter | No | No |
Fixed AC outlets in the shed off battery | Sometimes | Recommended |
Shed wired back to the house panel | Yes | Yes |
Grid-tied solar on the shed | Yes | Yes (licensed PV installer) |
Winter and the real-world derate

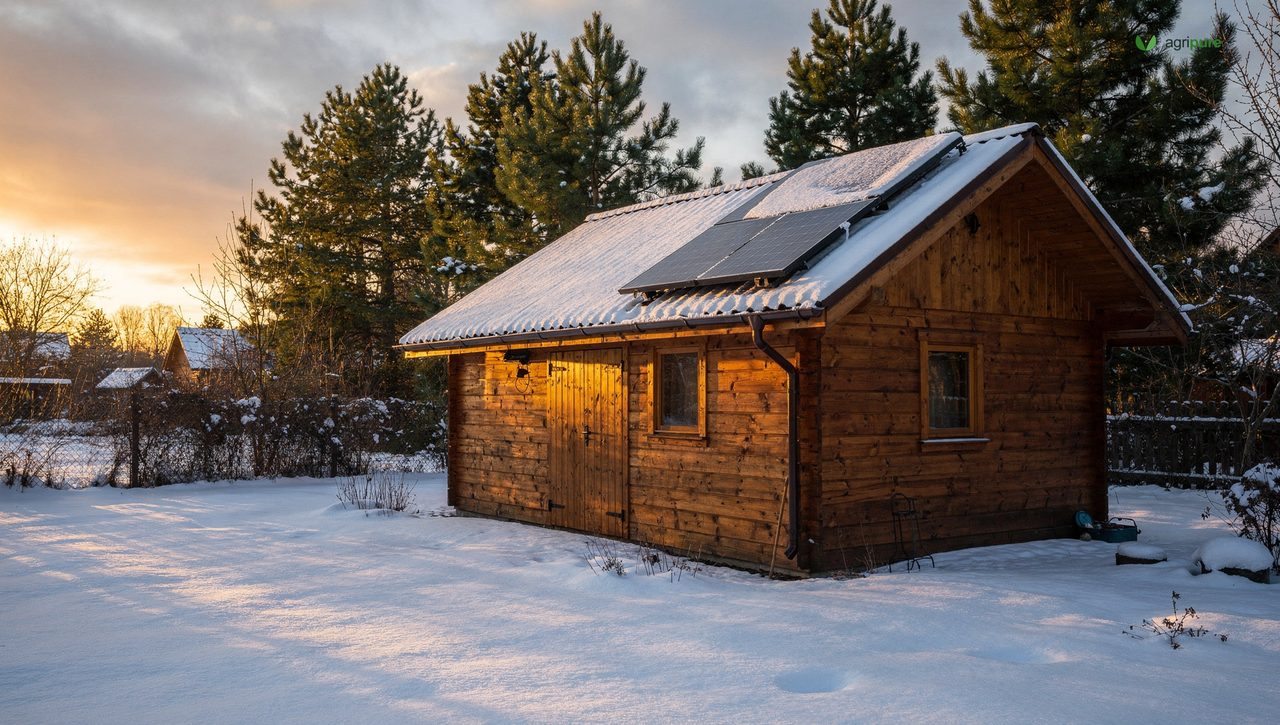

Once the wiring and permits are clean, the last variable is winter. A 200 W panel in Phoenix produces very differently from a 200 W panel in Maine in January. Use winter peak sun hours, not annual average, to size — 3.5 hours is a fair Mountain-West winter benchmark, 2 hours is realistic for the Pacific Northwest and northeast. Undersize for winter and you will be cold-cycling a lead-acid battery into an early grave.
The takeaway
That seasonality is the last design lever. A shed is the cheapest, lowest-risk place to learn solar: pick the load tier, source matched components, fuse the battery, ground to NEC, and check your winter peak sun hours. 3 tiers cover almost every real shed — LED-only on 30 W, lights and tools on 200 W, fridge included on 400 W — and the safety rules are the same at every size. Build it right and the same playbook scales to a cabin, a workshop, or an off-grid home.
