Off-grid solar kits explained: what’s actually in the box and what’s missing

An off-grid solar kit is a tidy box that promises everything you need to run a cabin without the grid. Read the contents page carefully and you will find that it usually means everything except the mounting, the wiring, the fuses, the permits, and the generator that gets you through a 5-day cloud. This guide walks the four core components, the sizing math, and the gaps you will be filling on your own. If you have not seen the underlying physics, our piece on how solar panels work covers that. For larger questions about household energy use, see sustainable energy solutions. For a shed-scale build, see our solar power for a shed guide.

What is actually in the box

Strip the marketing and an off-grid kit is 4 boxes that have to talk to each other: panels, charge controller, battery bank, and inverter. A few kits add a transfer switch or a small load center, but those 4 boxes do the real work. Anything else in the carton — cable lugs, a few feet of #10 PV wire, a wall bracket — is bonus, not architecture.

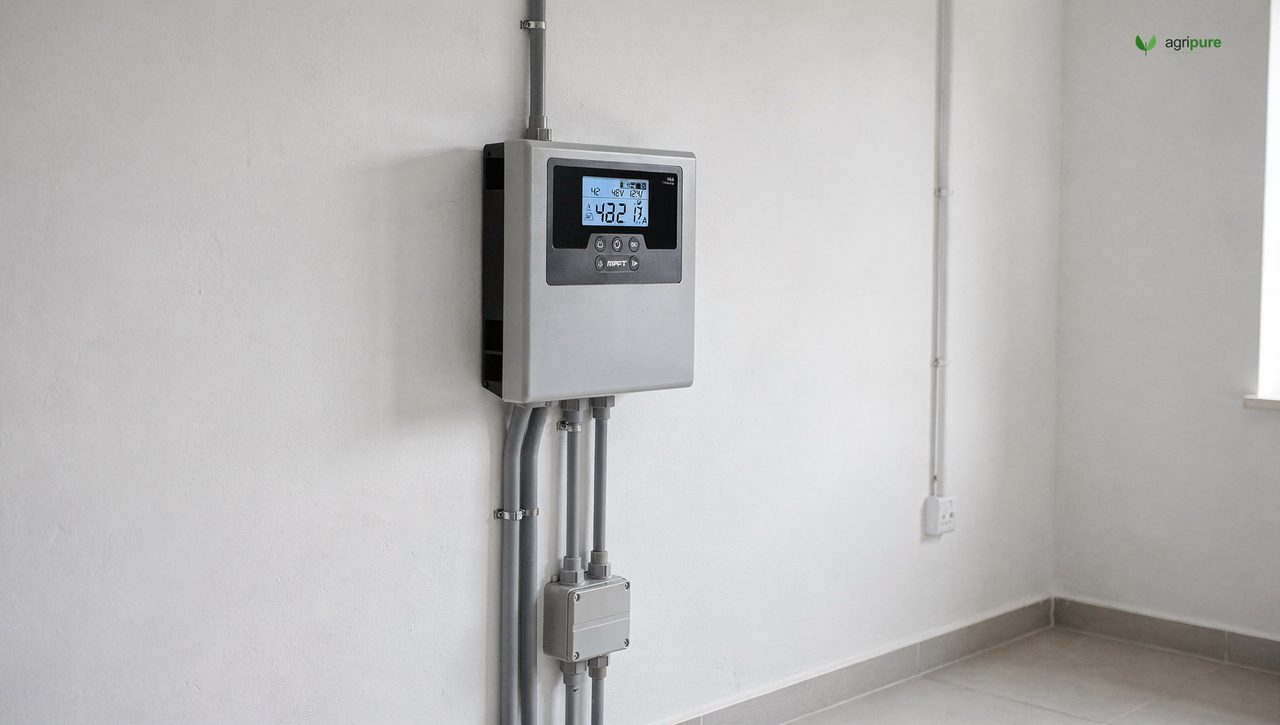

Charge controllers: MPPT or PWM

That little controller is where cheap kits cut corners. Clean Energy Reviews puts it plainly: MPPT solar charge controllers can be up to 30% more efficient than PWM, by holding the panels at their maximum power point. PWM works for 1 or 2 panels powering a light or USB charger. Any larger system — anything with two or more panels in series, or a panel voltage 8-10 V above the battery — should be MPPT.

Battery: lithium iron phosphate vs lead-acid

That choice runs straight into the battery question, because charge controllers, depth of discharge, and lifespan are all paired. Lead-acid (AGM or flooded) is cheap, heavy, and safely tolerates only about 50% depth of discharge. Lithium iron phosphate (LiFePO4) handles 80-100% depth of discharge, lasts 8-15 years, and weighs a third as much for the same usable kWh. The kit price difference rarely survives a 10-year math check.

Worked example: a 2 kWh/day cabin

Sizing a kit is unsexy arithmetic. The cabin example below comes from a published off-grid sizing guide and uses the standard rule: Array size (W) = Daily load (Wh) ÷ (Winter PSH × 0.75), and Battery capacity (Wh) = Daily load (Wh) × Days of autonomy ÷ Usable DoD.

Kit vs. piece-by-piece: which makes sense

Once you have done the sizing, the kit-vs-piecewise question gets easier. A kit gives you matched components, a wiring diagram, and one place to call when something is wrong. Piecewise gives you exactly the watt-hours and brands you want, plus the freedom to oversize the battery without paying for a bigger inverter. For first builds and weekend cabins, kits usually win. For full-time off-grid homes — see our pieces on tiny home solar and off-grid living — most builders outgrow a kit by year 2.

The hidden costs and common gaps

That kit price is rarely the install price. The Department of Energy notes that non-hardware ‘soft’ costs — permitting, installation labor, interconnection — can be up to 64% of a residential PV system’s total price. Off-grid is lighter on interconnection but heavy on the rest. Below is the checklist of what most kits leave out.

How to read a kit spec sheet

Those gaps are easier to spot once you know what to look for. Run any off-grid kit you are eyeing through these 4 questions before you swipe the card.

1. Is the controller MPPT? If you have 2+ panels, this is non-negotiable.
2. Are the batteries LiFePO4 with 80%+ usable DoD? Lead-acid kits look cheaper until you replace them in year 5.
3. Is the inverter pure sine wave, not modified sine? Modified sine kills well pumps, fridges, and anything with a brushless motor.
4. Does the bill of materials include MC4 wire, fuses, breakers, and mounting? If it does not, add the cost line.

The takeaway

That checklist is the whole point. An off-grid solar kit is a competent starter set, not a finished install. The four boxes — panels, controller, battery, inverter — are the easy part. The wiring, the permits, the mounting, and the generator are the part that decides whether you are still off-grid after the first 5-day cloud. Size the load first, demand an MPPT controller and a LiFePO4 bank, and budget roughly 30% on top for the balance of system. The cabin will run; the lights will stay on.
