Solar water heaters: how they work, types, and real savings

Water heating is the quiet second-largest energy bill in most North American homes, and a solar water heater attacks it directly: the U.S. Department of Energy says installing one should drop those bills by 50%–80%. That is a bigger, more reliable dent than most rooftop upgrades, because the physics is simple — sunlight hits a dark collector, the heat moves into water, and a tank holds it until the morning shower. This guide walks the whole machine: how it works, the active-versus-passive and direct-versus-indirect choices, flat-plate versus evacuated-tube collectors, freeze protection for cold zones, how to size it, what it costs and pays back, and how solar thermal stacks up against a heat-pump water heater or a solar-electric setup. Where a number matters, it traces to the DOE Energy Saver program, the IRS, or peer-reviewed work — not to a brochure.

How a solar water heater actually works

Strip away the marketing and a solar water heater is three parts: a collector that catches sunlight, a storage tank that holds the hot water, and — almost always — a conventional backup for the cloudy stretch. The DOE is blunt about that last part: “Solar water heating systems almost always require a backup system for cloudy days and times of increased demand.” Solar does the heavy lifting; the backup catches the gap.

The collector is where light becomes heat. A dark absorber soaks up solar radiation and transfers it to a fluid — either the household water itself or a separate heat-transfer fluid that later hands its heat to your water through a heat exchanger. DOE describes that exchange plainly: “Solar water heating systems use heat exchangers to transfer solar energy absorbed in solar collectors to potable (drinkable) water.” From there the warmed water rises or is pumped into an insulated tank, where it waits for the tap — a single 50-gallon tank can carry a morning’s showers on yesterday’s sun.

Solar thermal is not the same as solar electric

This trips up a lot of first-time buyers. A solar water heater is a thermal device — it turns sunlight straight into heat, with no electricity in the middle. That is a different machine from a photovoltaic panel, which converts light into current; if you want that side of the story, our explainer on how a solar panel turns light into electricity covers it. Thermal collectors are far more efficient at making heat than PV is, because they skip the lossy conversion to electricity and back — but they only make heat, while PV makes electricity you can use for anything. Hold that distinction; it decides the honest comparison later.

Active or passive: pumps versus gravity

The first fork is whether the system moves water with a pump or lets physics do it. The DOE splits it cleanly: “There are two types of solar water heating systems: active, which have circulating pumps and controls, and passive, which don’t.” Each has a place, and the trade is efficiency against simplicity — pumps buy output, gravity buys reliability.

Active systems (pumped)

An active system uses a small pump and a controller to push fluid through the collectors when the sun is out. They cost more and add parts that can fail, but they are typically the more efficient choice and give you control over where the collector and tank live. Most cold-climate domestic systems in North America are active, because the pumped design pairs naturally with the antifreeze loop that survives winter.

Passive systems (thermosiphon and ICS batch)

A passive system has no pump; it leans on the fact that hot water rises. The DOE notes passive systems “are typically less expensive than active systems, but they’re usually not as efficient. However, passive systems can be more reliable and may last longer” — fewer parts, fewer failures. Two designs dominate:

• Integral collector-storage (ICS), or “batch,” systems combine the collector and the tank into 1 unit — “a storage tank covered with a transparent material to allow the sun to heat the water.” Simple and cheap, but the DOE cautions they “should be installed only in mild-freeze climates because the outdoor pipes could freeze in severe, cold weather.”
• Thermosiphon systems put the tank just above a collector on the roof; heated water rises into the tank and “flows through the plumbing system when a hot water faucet is opened.” Reliable, but the roof has to carry a tank that can weigh 400 pounds or more full.

If you live where it rarely frosts, a passive batch heater is the lowest-cost, lowest-maintenance way into solar hot water — often well under half an active system’s price, with 0 moving parts to service. North of the frost line, the passive route narrows fast.

Direct or indirect: the freeze question

Cutting the other way is how the collector handles water in the cold. This is the choice that protects — or destroys — the hardware in a hard winter, so it deserves its own decision.

A direct circulation system pumps your actual household water through the collectors. The DOE’s guidance is geographic: “Pumps circulate household water through the collectors and into the home. They work well in climates where it rarely freezes.” Cheap and efficient where it never gets cold; a liability the first night the mercury drops below 32°F.

An indirect circulation system never sends drinking water onto the roof. Instead it circulates a non-freezing fluid — usually a propylene-glycol antifreeze mix — through the collector, then passes that heat to your water through a heat exchanger. The DOE: “Pumps circulate a non-freezing, heat-transfer fluid through the collectors and a heat exchanger. This heats the water that then flows into the home. They are popular in climates prone to freezing temperatures.” For most of the U.S. north of the Sun Belt — the Midwest, the Northeast, the Pacific Northwest interior, anywhere in USDA zone 6 or colder — indirect is the default for a reason.

Flat-plate or evacuated tube: a climate decision

Two collector types own the residential market, and the choice is mostly about how cold and cloudy your winters get. A peer-reviewed comparison by Ghani and colleagues at the 2017 ISES Solar World Congress weighed exactly this trade-off — flat-plate versus evacuated-tube for domestic hot water — and the honest answer is that neither wins everywhere.

Flat-plate collectors

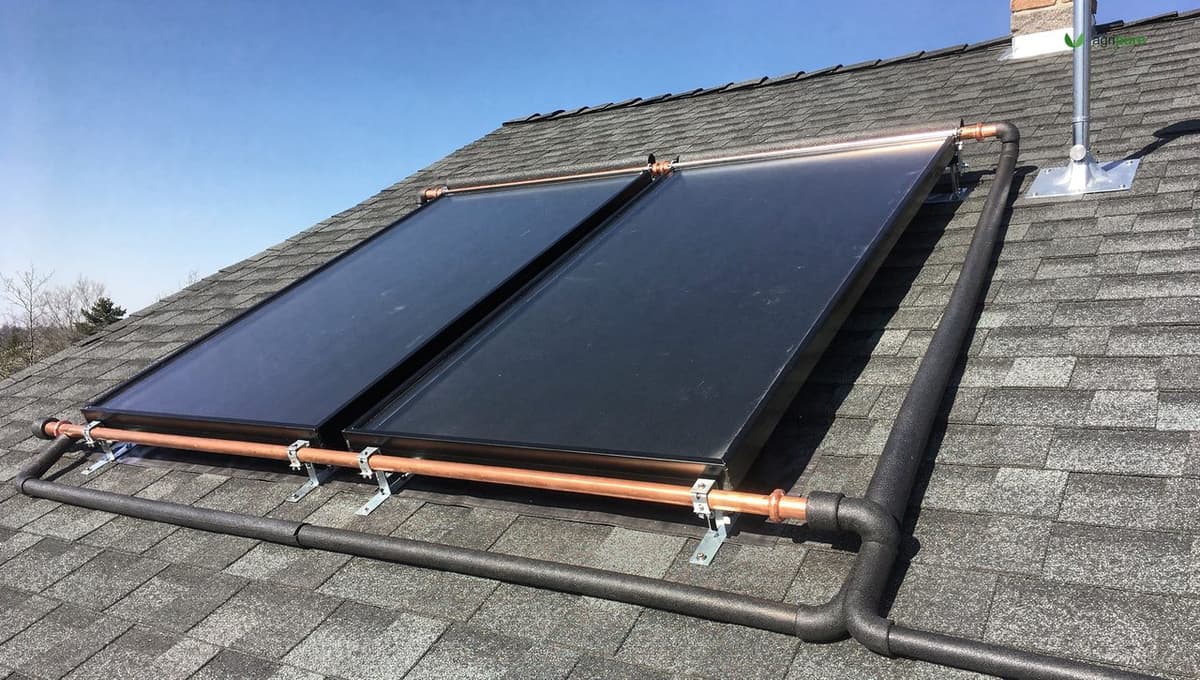

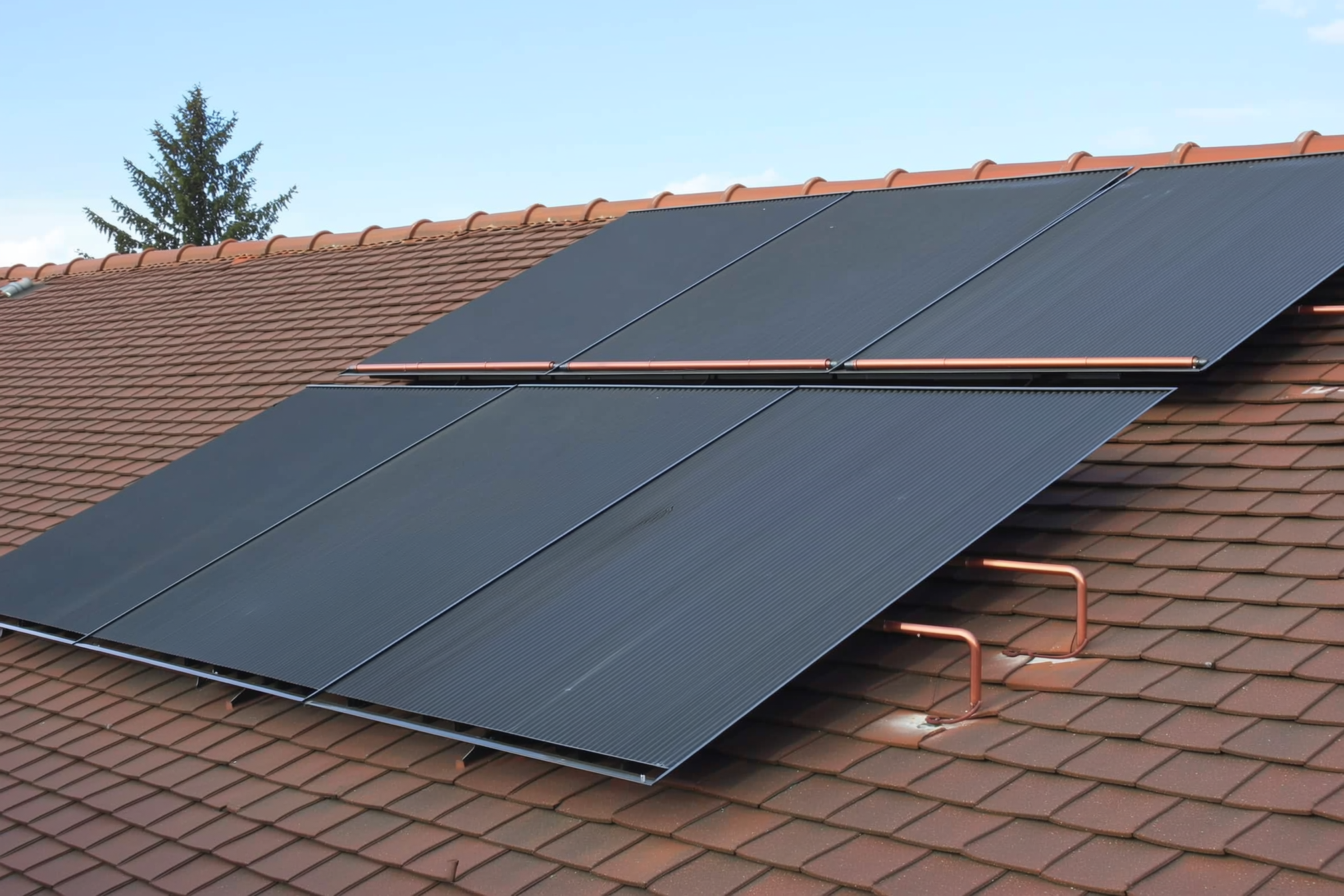

The flat-plate collector is the workhorse. The DOE describes it as an “insulated, weatherproofed box” containing “a dark absorber plate under one or more glass or plastic (polymer) covers.” It is rugged, cheaper, and easy to repair, and in warm-to-temperate climates it makes plenty of hot water. Its weakness is heat loss: in cold, windy weather a flat plate sheds warmth to the air, so its winter output sags.

Evacuated-tube collectors

An evacuated-tube collector wraps each absorber in a vacuum. The DOE describes “parallel rows of transparent glass tubes,” each holding “a glass outer tube and metal absorber tube attached to a fin.” The vacuum is the trick: it is one of the best insulators there is, so the tube keeps the heat it catches even when the air outside is freezing. That makes evacuated tubes the stronger pick for cold, cloudy, high-latitude homes — northern Canada, the upper Midwest, the mountain West — at a real cost premium over flat plates.

The practical read, and the one the 2017 economic comparison bears out: in the Sun Belt or a mild coastal zone, a flat-plate system is usually the better value. Where winters are long, dark, and cold, evacuated tubes earn their higher price by actually delivering through the season you need them most.

Freeze protection is the cold-climate dealbreaker

For anyone north of a mild-frost line, this is the section that matters most. A solar collector sits outdoors in full exposure; water left in it on a sub-freezing night expands as it freezes and can split a copper pipe or crack a collector. There are three honest ways to handle it.

• Use an indirect, antifreeze-loop system. The DOE’s framing is that propylene-glycol fluids “protect the solar collector from freezing in cold weather” — keeping the collector loop liquid well below the 32°F at which plain water would burst it. This is the standard for genuinely cold zones and the most set-and-forget option.
• Use a drainback system. When the pump stops, the collector fluid drains by gravity into an indoor reservoir, so there is simply no water in the collector to freeze. Reliable, but it demands careful sloped plumbing.
• Reserve direct and batch systems for mild climates only. A direct system or an ICS batch heater is fine in Florida, coastal California, or the desert Southwest. Put one through a Minnesota January and you are gambling the hardware.

One rule covers all three: match the freeze strategy to your coldest realistic night, not your average one — a single hard freeze below 32°F is enough to crack an unprotected collector.

Sizing: collector area and tank volume

A solar water heater is sized to the people who shower under it, and the DOE gives workable rules of thumb. The goal, in its words, is “determining the total collector area and the storage volume you’ll need to meet 90%–100% of your household’s hot water needs during the summer” — summer, because that is when solar overdelivers and the system can carry the whole load.

Collector area per person

The DOE’s collector guideline scales with household size and latitude: “20 square feet (2 square meters) of collector area for each of the first two family members,” then “add 8 square feet (0.7 square meters)” per additional person in the Sun Belt, or “12–14 square feet” per person in the northern United States. The colder and dimmer your winters, the more collector you need per body — the same logic that favors evacuated tubes up north.

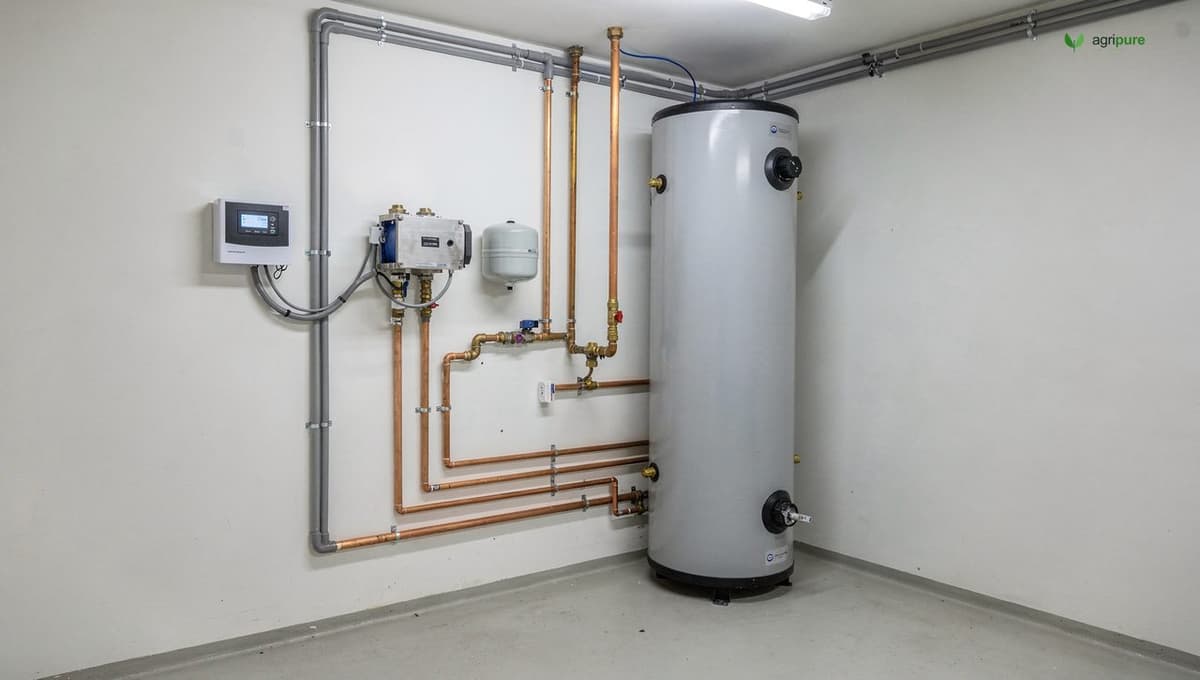

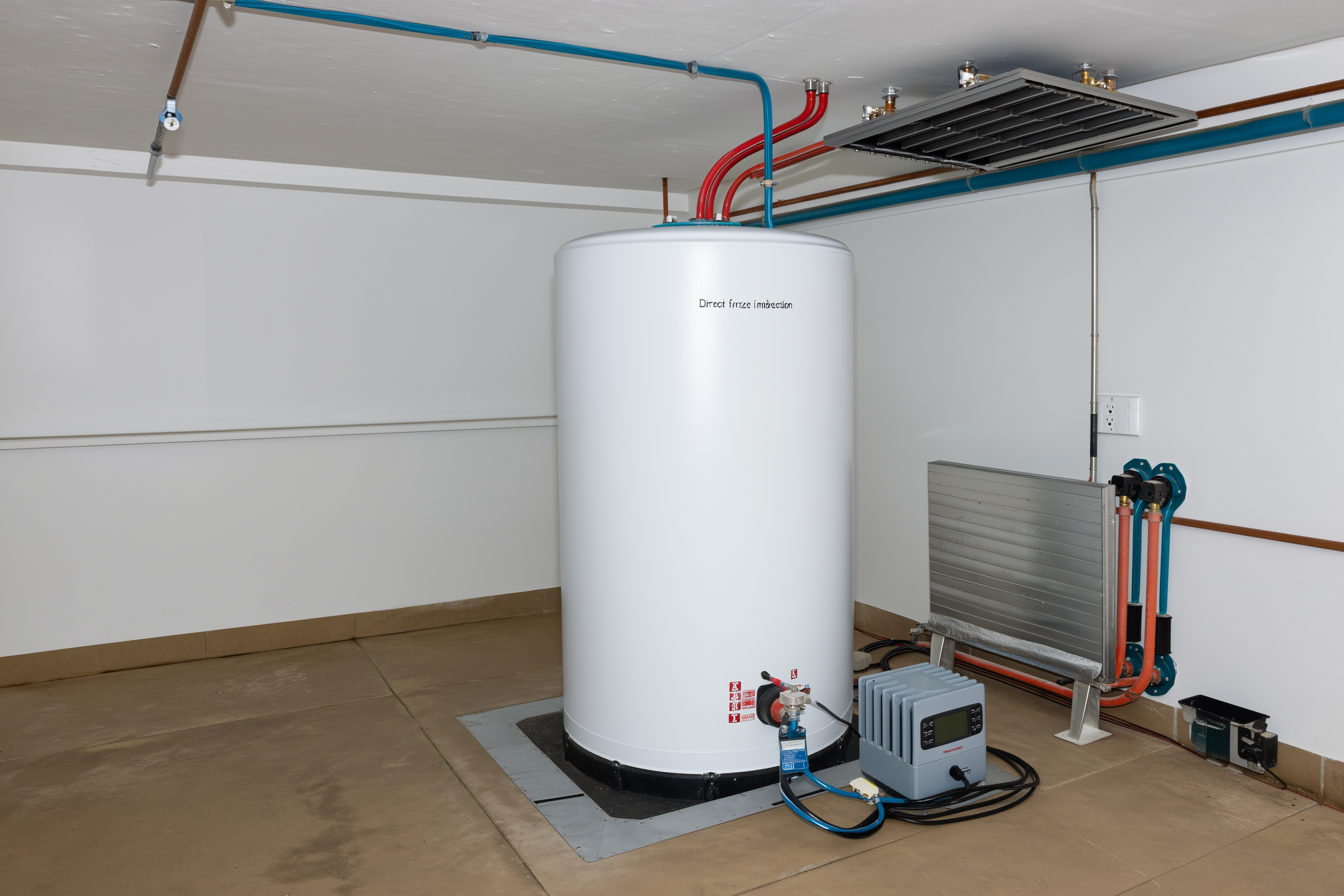

Tank volume

Storage scales with the collector. The DOE rule is “typically 1.5 gallons per square foot of collector,” rising “to as much as 2 gallons of storage to 1 square foot of collector area” in very warm, sunny climates where the system makes a surplus worth banking. For small households the starting point is familiar: “A small (50- to 60-gallon) storage tank is usually sufficient” for one to three people, scaling up from there.

Run the arithmetic for a four-person northern household and it lands near 64 square feet of collector — 20 for the first two people, plus roughly 12 each for the next two — paired with a tank near 96 gallons at 1.5 gallons per square foot. That is the order of magnitude; a local installer trims it to your roof, your water, and your habits.

What it costs and how fast it pays back

Here is where honesty matters most, because the sticker is real. A complete residential system, per EnergySage, “will cost approximately $9,000 before rebates and incentives,” and it “typically last[s] for around 20 years; some systems will work even longer.” Against that, the savings are the 50%–80% cut to your water heating bill that the DOE quotes — applied every year for two decades.

The 30% federal credit

The incentive changes the math sharply. The IRS Residential Clean Energy Credit “equals 30% of the costs of new, qualified clean energy property for your home installed anytime from 2022 through December 31, 2025,” and it explicitly covers solar water heating — with one string: “Solar water heaters must be certified by the Solar Rating Certification Corporation or a comparable entity endorsed by your state.” That 30% credit turns a $9,000 system into roughly $6,300 out of pocket.

Running the payback

Payback is just arithmetic from there. DOE gives the formula: “Payback Period (years) = (Initial Cost $) ÷ (Annual Cost Savings $/year).” A home with a high electric or propane water heating bill and good sun pays back fast; a home with cheap natural gas and cloudy winters pays back slowly. DOE also defines the solar energy factor (SEF) — “the energy delivered by the system divided by the electrical or gas energy put into the system” — as the apples-to-apples number to compare competing systems before you buy. A bigger current water heating bill makes solar look better; if you barely spend on hot water, the payback can stretch past 10 years, and that is a fair reason to pass.

Solar thermal vs heat-pump water heater vs solar PV

This is the comparison the brochures skip, and it is the one that should drive the decision. There are 3 credible ways to heat water with the sun’s help, and the right one depends on your climate and your bill.

Dedicated solar thermal

A solar thermal system (everything above) is the most efficient at the single job of making heat, and it cuts the water heating bill 50%–80%. Its limits are real: it only makes heat, it needs roof-mounted collectors, and in a cold climate it needs the antifreeze plumbing. For a household with a big hot-water bill in a sunny zone, that single-purpose efficiency is exactly the point.

A heat-pump water heater plus PV

A heat-pump water heater makes no claim on the roof. The DOE explains that these “use electricity to move heat from one place to another instead of generating heat directly. Therefore, they can be two to three times more energy efficient than conventional electric resistance water heaters.” Pair one with rooftop PV and you get solar-heated water without a single thermal collector. The catch is also from the DOE: they need to sit where the air “remain[s] in the 40º–90ºF (4.4º–32.2ºC) range year-round” with “at least 1,000 cubic feet of air space” — a heated basement, not an unheated shed in Vermont.

Solar PV plus an efficient electric heater

The 3rd path is solar PV plus an efficient electric water heater. Photovoltaic panels feed the grid or a battery, and that electricity runs a heat-pump or resistance water heater. It is the most flexible of the 3 — the same panels run your lights, your well pump, and everything else — which is why it is the backbone of most modern off-grid builds where cutting the cords of power and water is the goal. For the wider picture of where home energy actually goes before you spend on any of this, start with the loads, not the hardware.

The honest verdict: in a sunny climate with a big electric or propane hot-water bill, dedicated solar thermal still wins on pure efficiency — 2 to 3 times the heat-making efficiency of running resistance electric. In a mixed or cold climate, or where you also want solar electricity, PV plus a heat-pump water heater is often the more sensible, more flexible spend.

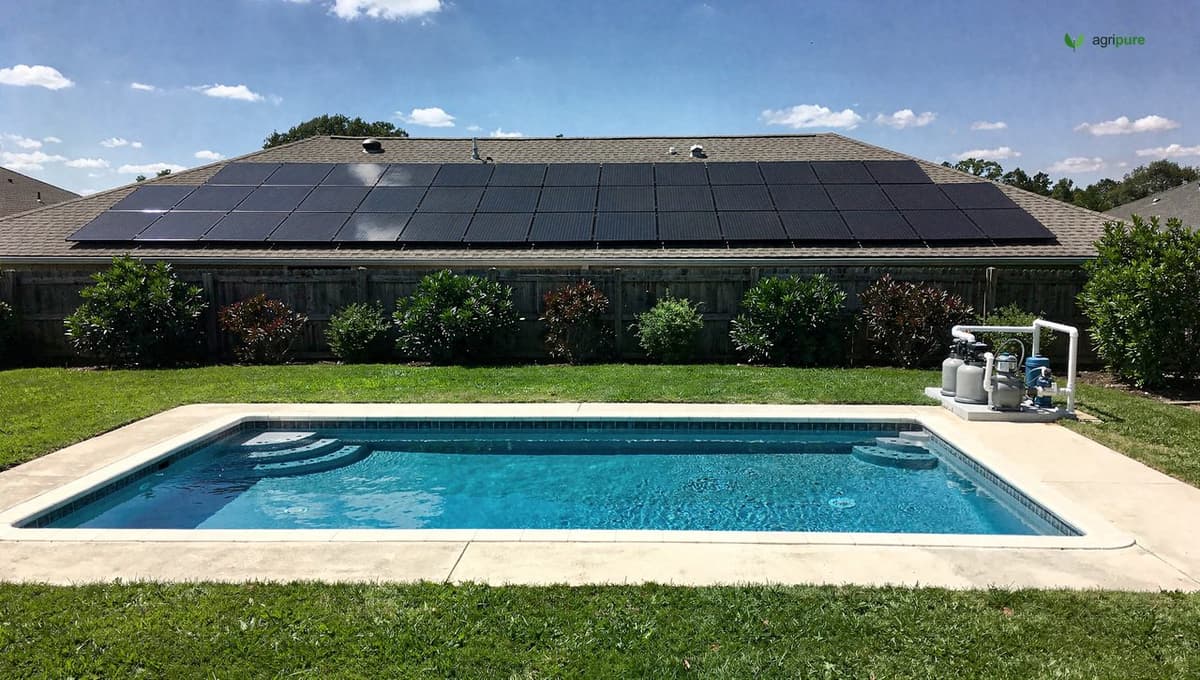

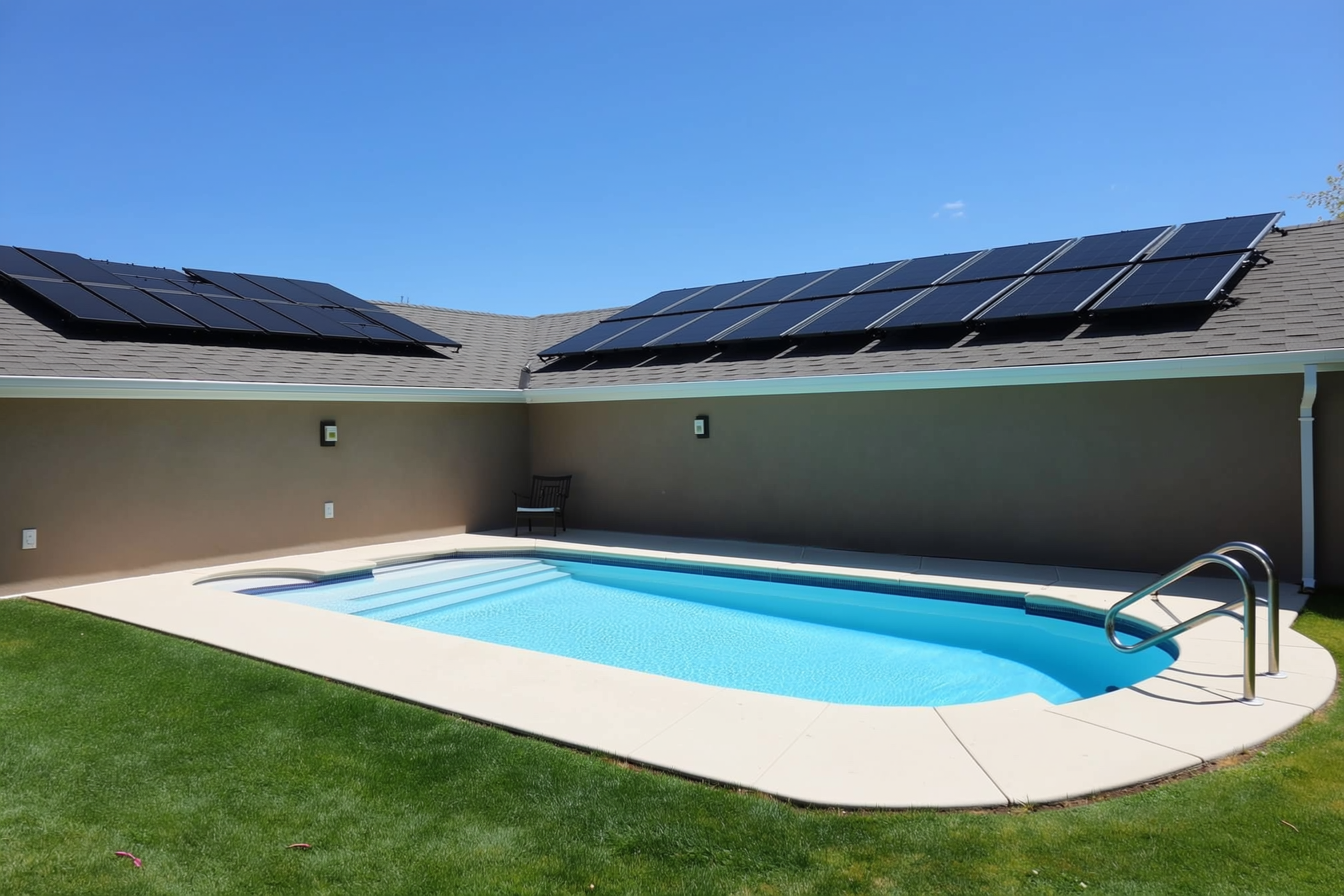

Solar pool heating: the easiest win

If you own a pool, this is the lowest-friction solar payoff there is. The DOE calls it directly: “solar pool heating is one of the most cost-effective use of solar energy in some climates,” with “a payback of between 1 and 7 years, depending on your local fuel costs.” That is faster than almost any domestic hot-water system.

Mechanically, it is forgiving. “Pool water is pumped through the filter and then through the solar collector(s), where it is heated before it is returned to the pool” — often through cheap, unglazed black collectors, because pool water only needs to be a few degrees warmer, not shower-hot. Three numbers frame the whole decision:

• Collector area: the DOE advises “the surface area of your solar collector should equal 50%–100% of the surface area of your pool.”
• Payback: “between 1 and 7 years, depending on your local fuel costs” — faster than most domestic systems.
• Operating cost: “cost competitive with both gas and heat pump pool heaters,” with “very low annual operating costs,” and they “typically last longer.”

For a homestead with a pool, that adds up to close to free heat across a long swimming season.

Maintenance and lifespan

A solar water heater is a 20-year appliance, and the upkeep is light but not zero. The two recurring jobs both come from the DOE on a similar clock.

• Antifreeze fluid in an indirect system degrades over time and, per the DOE, “normally should be changed every 3–5 years.” Because the loop is pressurized, this is a job for a solar contractor, not a Saturday afternoon.
• Scale and minerals build up in hard-water regions. The DOE’s fix: “avoid scaling by using water softeners or by circulating a mild acidic solution (such as vinegar) through the collector or domestic hot water loop every 3–5 years, or as necessary depending on water conditions.”

Beyond those, the routine is what any water heater wants — an occasional check of the tank, the pump, and the controller, and an eye on the collector glazing for cracks or fogging. Keep up with it and a 20-year service life is realistic, with the collectors often outlasting the rest of the hardware.

The bottom line

A solar water heater is one of the most dependable ways to turn sunlight into a lower bill: 50%–80% off your water heating, every year, for about two decades, on a machine simple enough that some 1970s installs still run. The choices are not mysterious. Pumped or passive depends on your budget and roof. Direct or indirect depends on your winter — and north of a mild frost, the antifreeze loop is mandatory. Flat-plate or evacuated tube depends on how cold and cloudy it gets. Size it to your household and aim for 90%–100% of summer hot water. Then run the payback against your real bill: if you spend a lot on hot water and have decent sun, solar thermal is hard to beat; if not, a heat-pump water heater paired with solar electricity may be the smarter spend. Either way, the sun is the cheapest fuel on the property — the only question is which machine you buy to catch it.
