Solar livestock water heaters: keep troughs and tanks ice-free off-grid

Every winter the same job comes back on a cold-climate homestead: keep the animals’ water from turning to ice. It sounds minor until you live it. Michigan State University Extension puts the stakes plainly — “Livestock cannot meet their water requirements by eating snow,” and “dehydration can be fatal to animals.” When a trough skins over, intake drops, and the University of Minnesota Extension notes that “frozen water or excessively cold water significantly limit water and feed intake” — the animal eats less precisely when it needs calories most to stay warm. This guide is about doing that job with the sun instead of an extension cord run across the snow. It starts with the passive, energy-free tricks that buy you ice-free time, says honestly where they fail, then walks the real arithmetic of running a de-icer from a solar panel and battery — for a stock tank, a horse trough, or a flock’s drinker. For the wider job of cutting the cords of power and water off-grid, winter water is one of the loads that humbles people first.

Why troughs and tanks freeze — and why it matters

Start with what the water has to lose before it freezes. A full tank holds a surprising amount of stored heat: as the BuildItSolar stock-tank work explains, “the water has a lot of thermal mass and needs to cool from about 50 degrees (typical temperature of water straight from the hydrant) down to 32 degrees before ice will start forming.” That 18°F of cushion is your whole passive budget. The faster the tank sheds heat, the faster it spends that budget and skins over.

Most of that heat leaves through the top. The same source notes that “typical stock tanks have a large, exposed water surface that loses heat,” and a thin-walled metal or poly tank also bleeds warmth straight into cold air and frozen ground. Wind makes it worse by stripping the warm layer off the surface. So the freeze problem is really a heat-loss problem, and every passive trick below is just a way to slow one of those leaks.

The cost of getting it wrong

The animals make the stakes concrete. South Dakota State University Extension gives the working numbers: “non-lactating females and bulls require one gallon of water per 100 pounds of body weight,” rising to “two gallons per 100 pounds of body weight” for a lactating female — so a single 1,200-pound cow can need 12 to 24 gallons a day, and snow will not cover it. SDSU adds the winter twist: cold weather already pushes cattle to “drink less water in further efforts to maintain body temperature,” and “limiting water intake reduces feed consumption and animal performance.” A frozen trough turns a mild reluctance into a real intake crash, on the coldest days of the year.

Passive solar and no-power tricks come first

Before you buy a watt of heat, slow the heat loss — these 4 tricks cost nothing to run and they are where solar truly shines for livestock water. None of this is the same as a rooftop solar hot-water system or general passive-solar building design; those are their own topics, and the tricks here are aimed squarely at keeping a drinking vessel liquid. The goal is simple: stretch that 18°F cushion as long as possible.

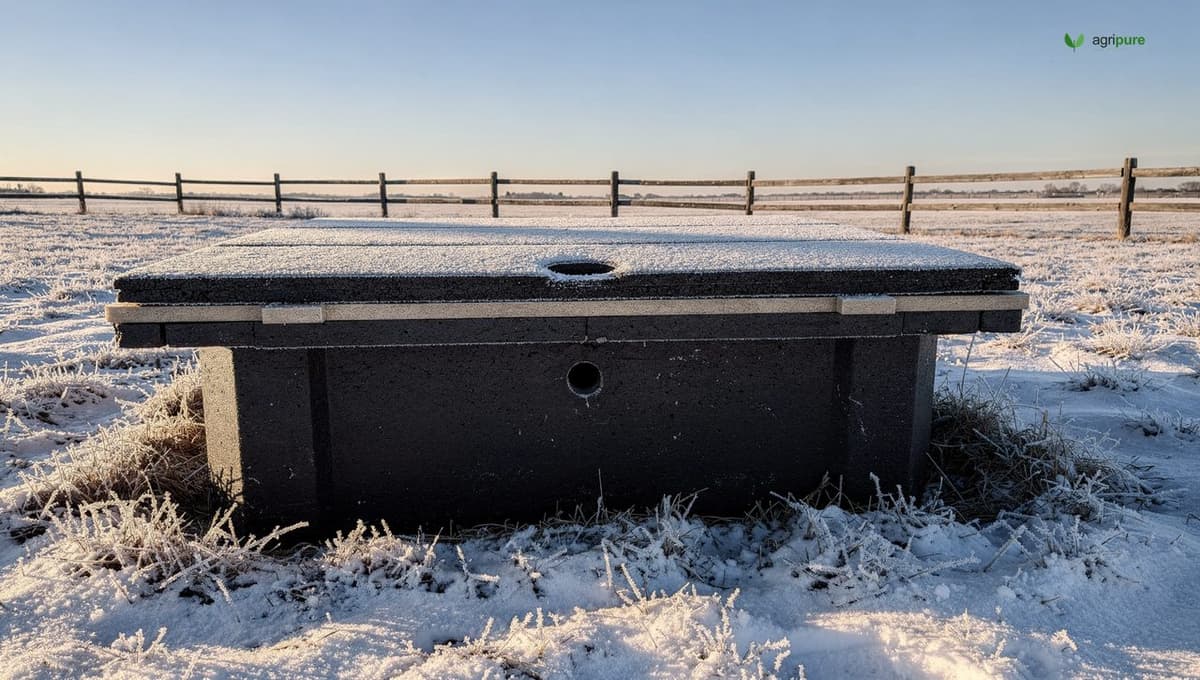

Insulate the tank and shield it from wind

The single biggest lever is insulation. eXtension Farm Energy is direct that “insulation around an automatic waterer or water tank and protection from the wind will help curb heat loss.” In practice that means wrapping or boxing the tank in rigid foam board — a DIY insulated stock tank documented by Gary Reysa used “1 1/2-inch insulation board between the frame 2 x 4s, plus a second layer of 2-inch insulation board inside the frame.” The payoff is real: his fully insulated build “is using 61% less electricity than the old setup.” Even with no heater at all, that same insulation roughly triples how long the water stays open before you have to intervene.

Use more water, darker, in the sun

Volume is your friend. Because freezing only starts after the whole mass cools to 32°F, a bigger, deeper tank rides through a cold night that would freeze a shallow bucket solid. Color and aspect add free solar gain: a dark tank absorbs daytime sun — in Reysa’s design “the tank wall is painted black to absorb heat from the sun efficiently” — and siting the tank where it catches low winter sun on its south face turns it into a crude passive collector. The sun warms the wall, the wall warms the water, and you bank a few degrees of cushion for the night ahead.

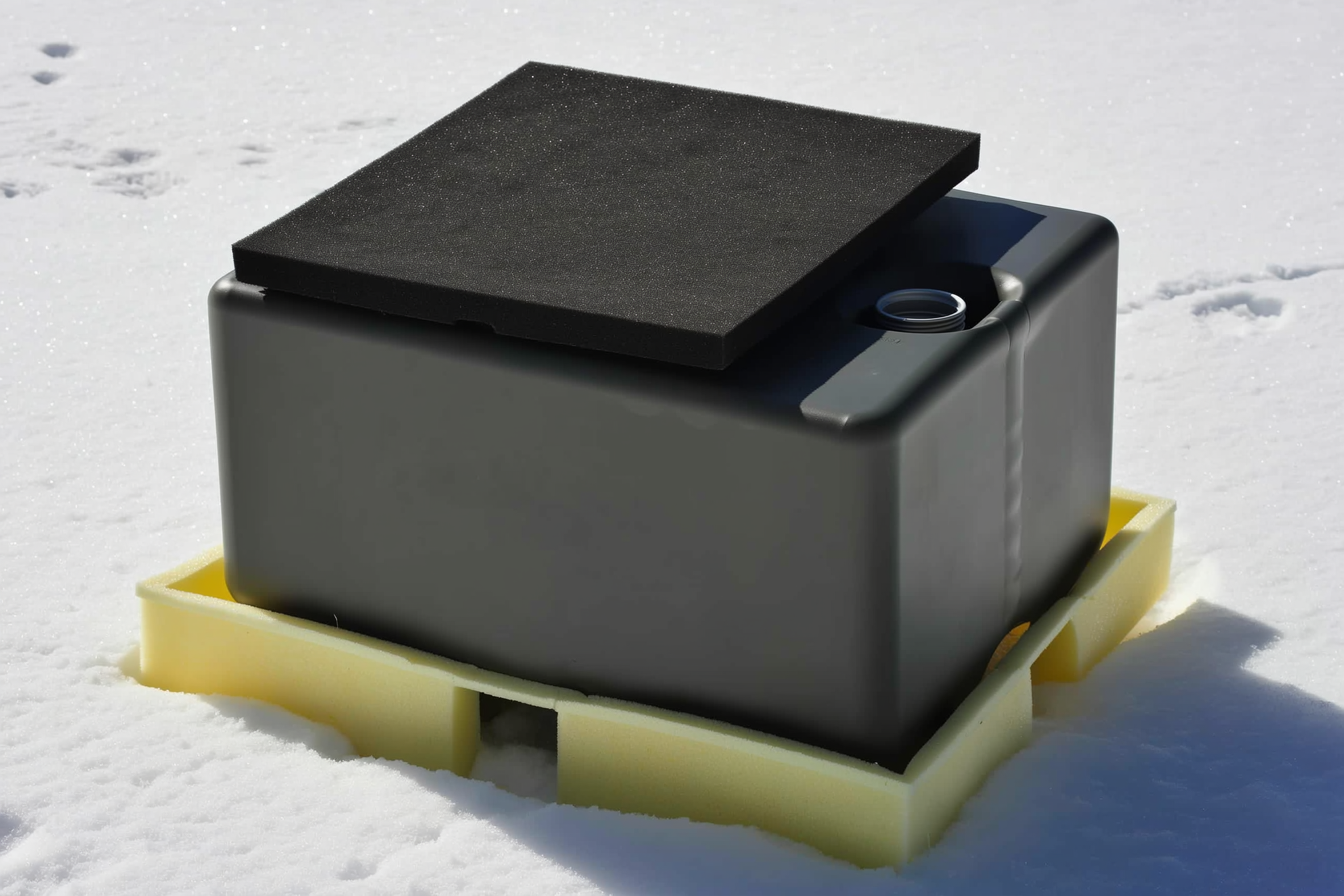

Cover most of the surface

Since the open top is the main heat leak, cover it. eXtension describes frost-free fountains that “cover the water surface with balls, lids, or small openings to reduce heat losses,” and the homestead version is the same idea: an insulated lid with a hole just big enough for an animal’s muzzle. BuildItSolar confirms “the lid further reduces heat loss from the water surface.” Floating a layer of plastic balls or a foam-board cover with a drinking port can cut surface loss sharply for the price of an afternoon.

Keep the water near warmer ground

The ground a few feet down stays well above freezing, and you can borrow that heat. A Cooperative Extension answer describes burying a sealed tractor tire so it holds water, “keeping most of the water in contact with the warmer ground, and only allowing a portion of the water totally exposed to the air/cold.” Energy-free and frost-free fountains use the same geothermal trick plus an insulated, ball-covered drinking hole. eXtension reports they “can save $60 to several hundred dollars per year” against a heated unit — but with a crucial string: they “require a minimum number of animals drinking from the fountain” to keep fresh, above-freezing water cycling up. One goat on a big energy-free fountain will let it freeze; a dozen cattle will keep it open.

Where passive hits its limit

Here is the practitioner-honest part. Every trick above slows heat loss, but none of it adds heat, and in a real cold snap the math turns against you. A string of nights well below 0°F, short gray days that starve any solar gain, or a herd too small to keep an energy-free fountain cycling — any of these will freeze an insulated tank eventually. Wind accelerates it. The 18°F thermal cushion that bought you a comfortable night in November is gone by 2 a.m. in a January Arctic outbreak.

When that happens you have exactly two honest options.

• Daily management: breaking and scooping ice once or twice a day, hauling warm water, or floating a closed jug of salt water to keep a weak spot open. It works, it is free, and it is brutal at chore time when the wind is howling.
• Add heat: the most controllable way to add a little warmth is a thermostatic de-icer that catches the nights passive alone cannot.

For most cold-climate keepers the right answer is a layered one: insulate and cover the tank so the heater rarely has to run, then let a de-icer handle the extremes. The passive work is not wasted when you add power — it is what keeps the powered run-time, and the bill, low.

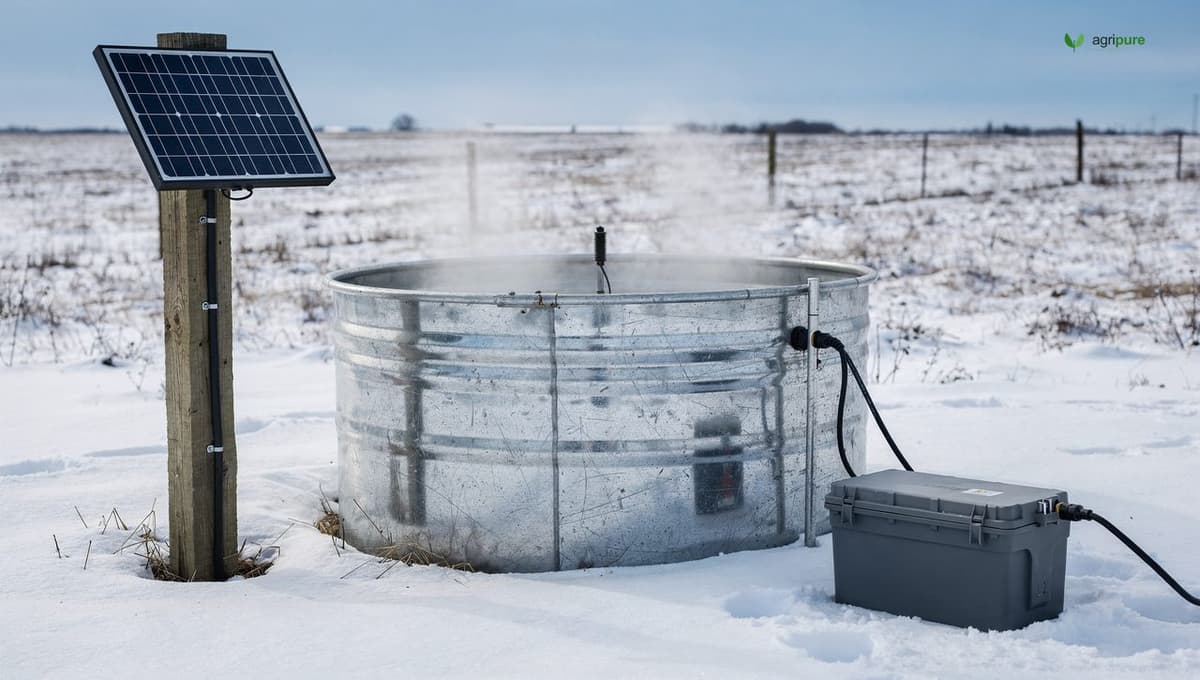

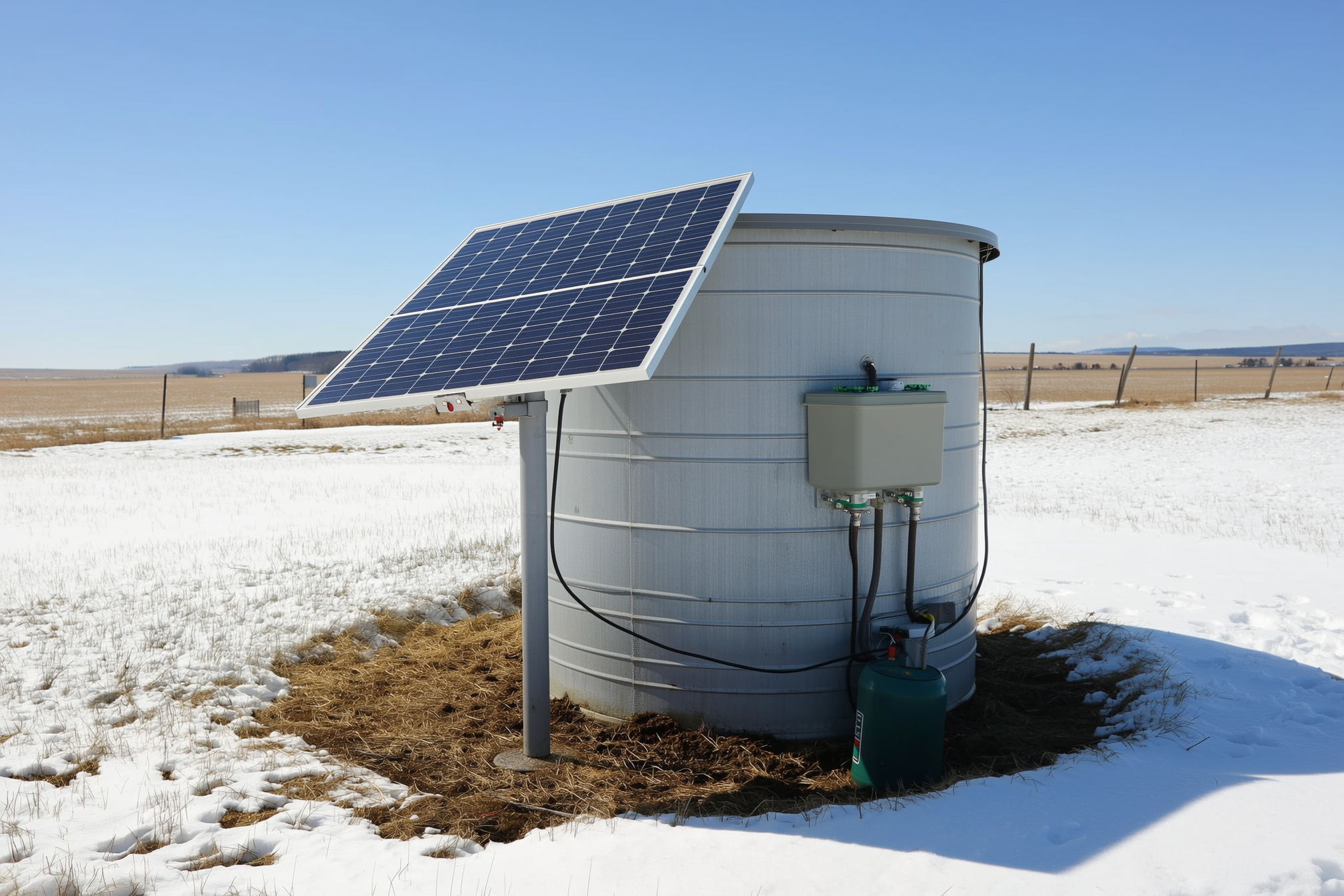

Active solar: running a de-icer from a panel and battery

This is what people mean when they search for a “solar water trough heater,” and it deserves a clear-eyed look, because the marketing oversells it. A de-icer is a resistive heating element. To run one on solar you need three things sized to each other: the de-icer’s wattage, the watt-hours it actually draws per day, and a panel-plus-battery big enough to deliver those watt-hours including through the dark and cloudy hours. The physics behind that panel — how daylight becomes current — is covered in how a solar panel turns daylight into current; here the focus is the sizing.

Size the de-icer to the tank

First, match the heater to the volume. Miller Manufacturing’s de-icer sizing guidance is the industry standard, and bigger is not better — an oversized element just burns more power. The saving grace for any electrical approach is the thermostat: Miller notes thermostatic de-icers “have a thermostat inside that senses when the water temperature dips below freezing and powers the unit on until the water temperature reaches a set point above freezing,” so the element is off most of the time. eXtension frames the same logic for whole fountains: a thermostat “set so that the water does not freeze but not so high that the heater turns on when livestock drink (32 to 34 degrees F.)” is what keeps run-time, and the bill, down.

Do the watt-hour arithmetic

Nameplate wattage is not what you must supply; daily watt-hours is. A 1,500 W de-icer that a good thermostat keeps running, say, 6 hours out of 24 on a cold day draws about 9,000 watt-hours daily (1,500 W × 6 h). Now compare that to what a panel makes. Per the SolarReviews summary of NREL data, “during a peak sun hour you can expect a 300-watt solar panel to produce roughly 300 watt-hours,” and most of the country sees only enough sun that “4 peak sun hours or more is considered a good location.” So even at 5 peak sun hours, a 300 W panel makes about 1,500 watt-hours a day — and winter is worse, because “summer months and locations farther south will generally see more peak sun hours than wintry times and areas farther north.” Covering 9,000 winter watt-hours would take well over a kilowatt of panel plus a large battery. That gap, not any mystery, is why a 1,500 W stock-tank de-icer is a poor match for a small solar setup.

Why a real solar trough heater needs a battery

The sun does not shine at night, and the U.S. Department of Energy is plain that “the amount of power generated by a solar energy system at a particular site depends on how much of the sun’s energy reaches it.” Water freezes hardest exactly when there is no sun — the long, still, clear nights. A panel alone can only de-ice while the sun is up, which is the easy half of the problem. That is why a genuine solar trough heater is a battery system: the panel charges a battery by day, and the battery runs the de-icer through the night. Missouri Wind and Solar’s stock-tank de-icing kit shows the shape of it — it ships with “2) 100 Watt Monocrystalline Solar Panels,” it “will run both day and night,” and tellingly the “batteries not included.” The battery is the expensive, essential part most “solar de-icer” listings quietly leave out.

The low-watt workaround

Faced with that arithmetic, many off-grid keepers stop fighting it and drop the wattage instead of growing the array. Rather than power a 1,500 W resistive element, they run a small air bubbler or circulating pump — on the order of 100 W continuous — off a modest panel and battery. The moving water resists skinning over and keeps an opening in the ice even when the bulk of the tank is cold. It does not warm the water, and it will lose to an extreme freeze, but at roughly a fifteenth of the load it is something a small solar system can actually carry day and night. Paired with a well-insulated, covered tank, a low-watt bubbler is the most realistic solar answer for a stock tank far from the grid.

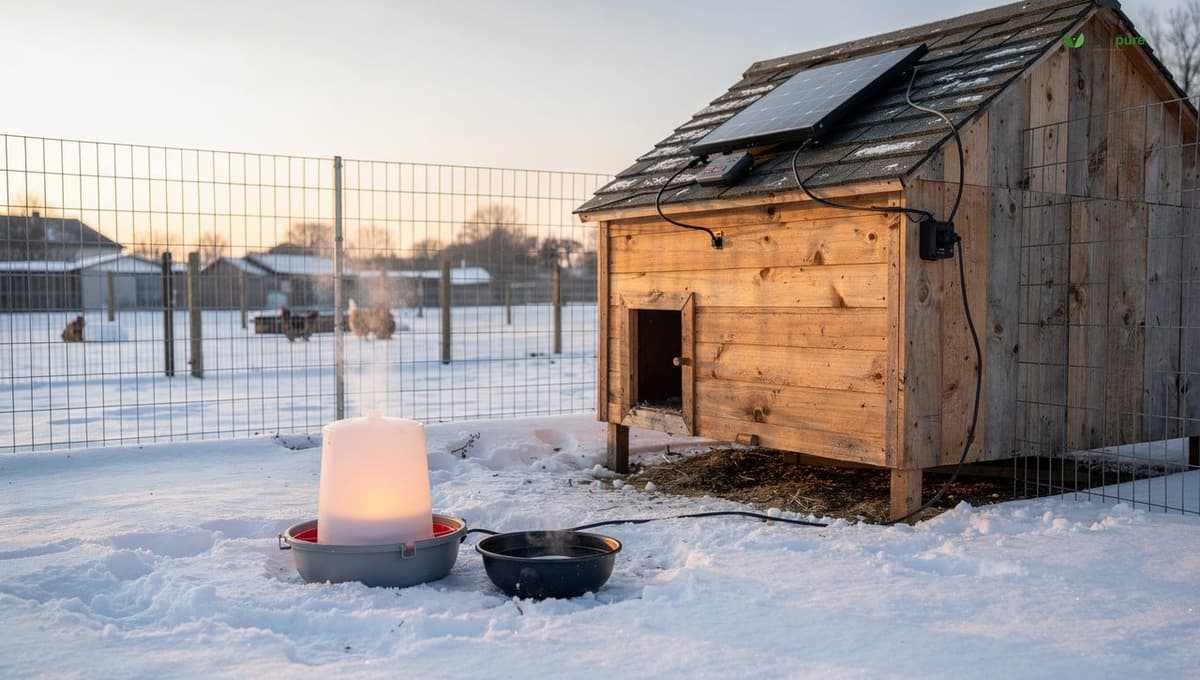

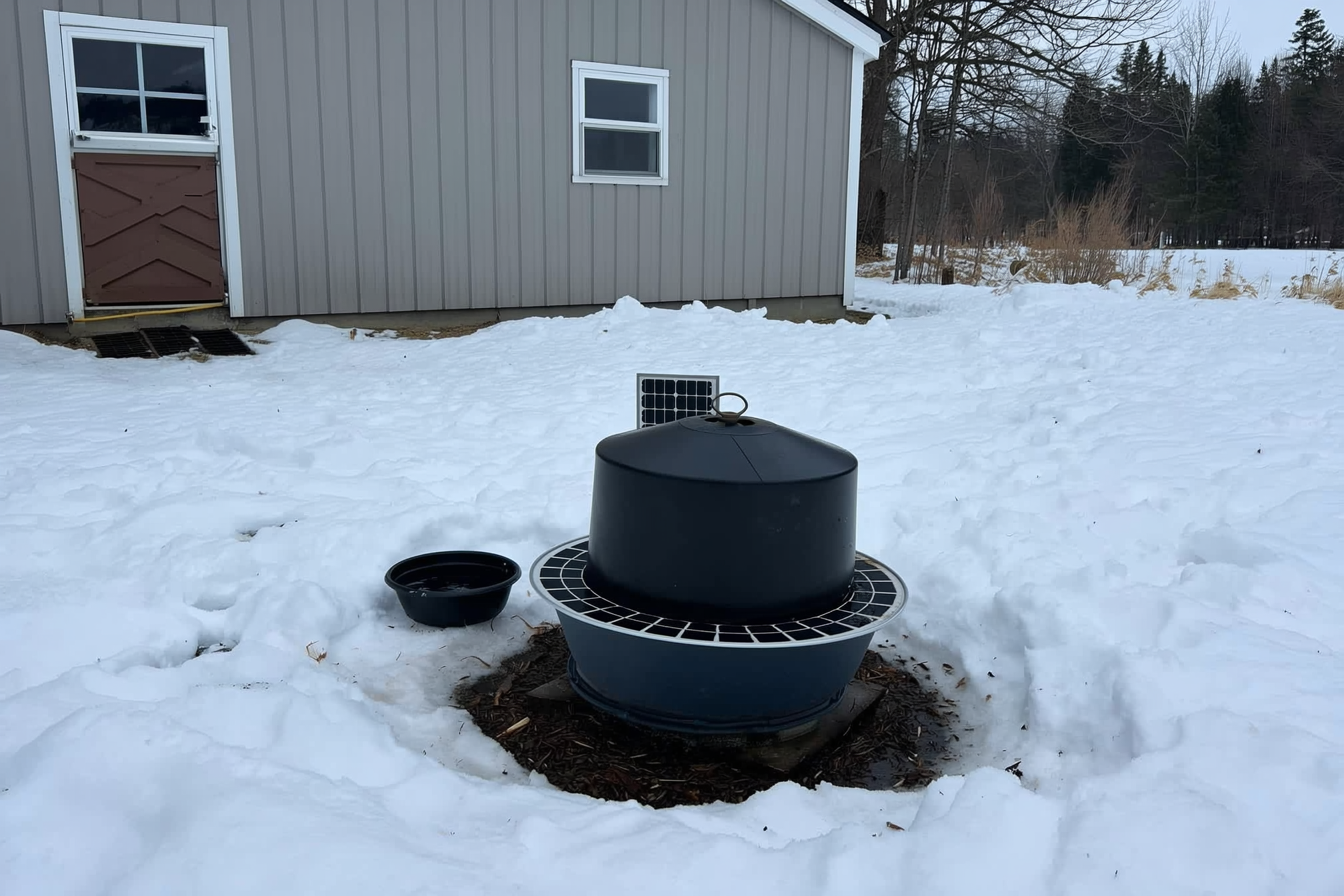

Solar-heated poultry and pet bowls

Small animals change the math in your favor, because the heat needed is tiny. A flock’s drinker or a dog’s bowl holds gallons, not hundreds of gallons, so the wattage to keep it open is small enough that a modest panel and battery become genuinely practical. This is the corner of “solar livestock water” where an off-grid setup most cleanly works.

The wattage is small

Heated pet and poultry vessels sip power compared with a stock-tank de-icer. K&H Pet Products notes a thermostatic heated bowl “only using 25 watts of power,” and a heated 3-gallon poultry fount where “the 60-watt, thermostatically controlled heater only heats the water when it needs warming.” Against the 1,500 W of a big trough de-icer, 25 to 60 watts is a load a single 100 W panel and a small battery can realistically cover through a winter night — the same battery-plus-panel logic as the trough, but at a scale that actually pencils out.

Match the vessel to the flock

The University of Minnesota Extension lists the common winter options for chickens — “plastic, heated founts that plug into an outlet,” “heated bases that you can place a metal fount on,” and “heated dog dishes” — and gives the homestead-honest backstop: “it’s a good idea to have a second waterer on hand in case one freezes or stops working.” If you are setting up winter water for a flock alongside the rest of raising pastured chickens, a low-watt heated base on a solar-charged battery, plus a spare fount thawing in the mudroom, is a combination that holds up.

Electrical safety near water and snow

Mixing electricity, metal, water, and animals demands respect — this is the part to not improvise. A heated waterer can fail in ways that put current through the trough and shock an animal away from drinking, or worse, so these 4 rules are non-negotiable.

• Use a GFCI. Any heated waterer or de-icer on grid or inverter power should run through a ground-fault circuit interrupter, which cuts power the instant current leaks toward ground.
• Size the cord, or skip it. A 1,500 W de-icer pulls about 12.5 amps, so any outdoor extension cord must be heavy-duty and rated for at least that continuous draw — undersized cords overheat. Better still, mount the outlet close and avoid the cord.
• Keep the element submerged. De-icers are built to shed heat into water, not air; running one dry can melt the housing or start a fire, so most must “be in water at all times.”
• Check for stray voltage. Extension specialists advise testing heated units with a voltmeter, because a pinhole fault can put a faint current through the water that animals feel and avoid — they will quietly stop drinking before you notice the trough is “off.”

Treat the solar side with the same care: fuse the battery, keep terminals dry, and house lead-acid batteries where their gassing can ventilate and their cold-weather capacity loss is understood.

The bottom line

The honest order of operations for solar livestock water is layered, not either-or. Slow the heat loss first with the free tricks — a big, dark, insulated, sun-facing tank with most of its surface covered, sited near warm ground — and you may sail through a normal cold spell on the water’s own 18°F of thermal cushion, no power at all. Accept that passive has a ceiling: a hard, windy, sunless freeze will beat it, and then you either break ice by hand or add heat. If you add heat, size the de-icer to the tank (500 to 1,500 W by volume), lean on its thermostat to keep run-time low, and remember that running it truly off-grid means a battery to carry the dark hours plus a panel sized to the day’s watt-hours — which is why a low-watt bubbler often beats a 1,500 W element on a small array. For poultry and pets the numbers finally fall your way: 25 to 60 watts is a load solar can carry. Across all of it, the same rule holds that holds for the animals themselves — match the system to your coldest realistic night, not your average one, because that is the night the water has to stay open.
