Windbreak Trees: Shelterbelt Design, Spacing, and Species

Quick answer: Design windbreaks with 40% to 50% optical porosity using a three-row layered structure of outer shrubs, tall central evergreen and deciduous trees, and inner fruit or nitrogen-fixing trees. A shelterbelt reduces wind speeds downwind for a distance of 10 to 20 times its mature height.

High winds represent one of the most persistent environmental challenges for farms, orchards, homesteads, and rural properties worldwide. Unmitigated winds accelerate topsoil erosion, physically snap timber and fruit branches, desiccate delicate foliage through excessive transpiration, chill livestock, and increase household heating costs during cold seasons.

Planting a multi-row living windbreak (also known as a shelterbelt) is the most effective, long-lasting agroforestry strategy to moderate wind velocity, create sheltered microclimates, and protect crops and infrastructure.

Unlike solid timber fences or masonry walls that force wind abruptly upward only to crash down in violent, turbulent vortices, a living shelterbelt acts as an aerodynamic filter. By understanding wind mechanics, layered structure, and climate-specific tree selection, you can establish a robust living barrier that enhances ecosystem resilience for generations.

Aerodynamic principles: the 40% to 50% porosity rule and protection zones

Effective windbreak engineering relies on physics and fluid dynamics rather than creating an impenetrable barrier:

```
+-----------------------------------------------------------------------+

+-----------------------------------------------------------------------+

+-----------------------------------------------------------------------+
```

The Solid Barrier Fallacy

A common misconception is that a windbreak should be completely solid and dense. When high-speed wind strikes a solid, impermeable wall (like a 100% dense board fence), the entire air mass is forced vertically over the barrier.

As it crests the top, a severe low-pressure vacuum forms on the leeward (downwind) side, pulling the air down into violent, spinning turbulent eddies that cause severe structural and crop damage close behind the wall.

The 40% to 50% Porosity Rule

A shelterbelt engineered with 40% to 50% optical porosity allows roughly half the incoming air to filter gently through branches and foliage:

• The air passing through the tree canopy acts as a cushion, smoothing the air that flows over the top.
• This cuts downwind velocity by 50% to 70% and breaks the flow into small-scale turbulence instead of the large recirculating eddies a solid barrier generates.

Calculating the Protected Zone (10H to 20H)

The zone of downwind wind reduction is measured in multiples of the windbreak's mature canopy height (abbreviated as H):

• Upwind Protection (2H to 5H): Wind begins slowing 2 to 5 tree-heights before reaching the windward edge.
• Maximum Leeward Protection (3H to 8H): The greatest wind reduction (up to 70% reduction in velocity) occurs between 3 and 8 times the tree height downwind.
• Extended Protected Zone (10H to 20H): Significant microclimate benefits (reduced evaporation, warmer soil temperatures, reduced erosion) extend downwind across a distance of 10 to 20 times the mature tree height. For example, a 15-metre (50 ft) tall mature shelterbelt creates a protected growing zone extending 150 to 300 metres (500 to 1,000 ft) across fields and pastures.

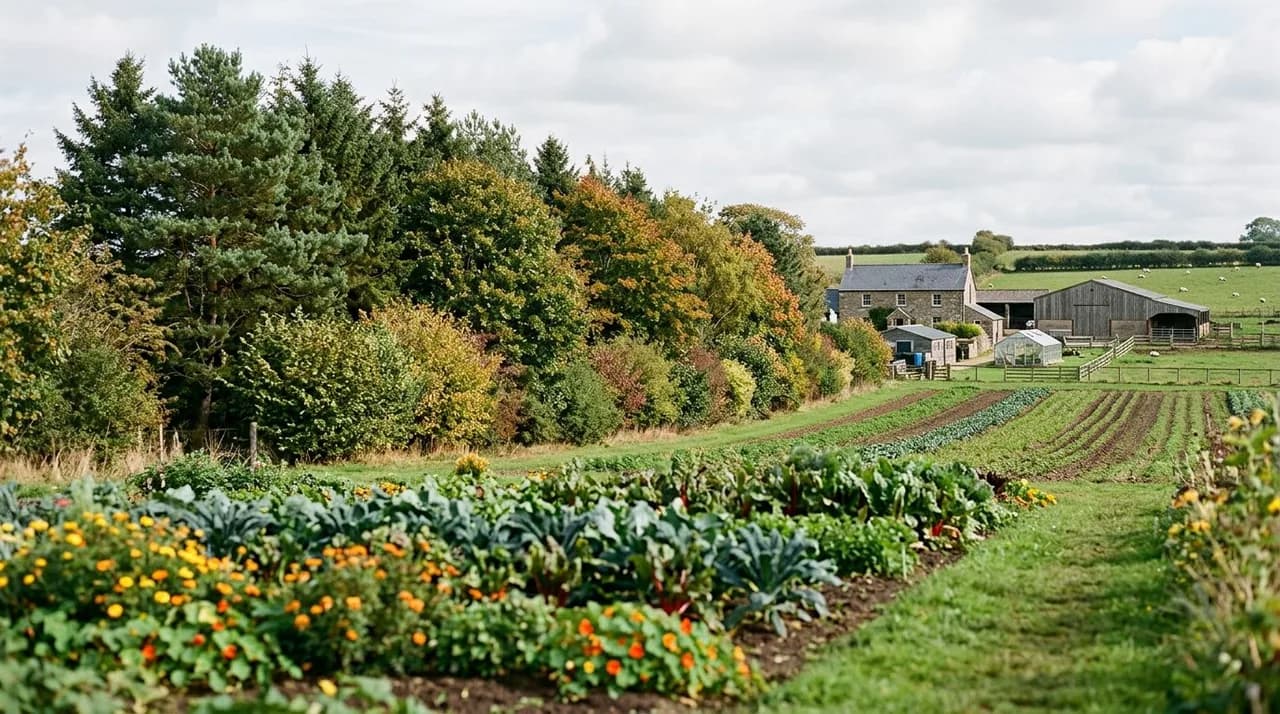

Multi-row shelterbelt architecture: the 3-row layered design

The most resilient, effective windbreaks utilize a tiered, multi-row design combining different species and growth habits:

```
[ Prevailing Wind ] ===> [ Row 1: Windward ] --> [ Row 2: Tall Canopy ] --> [ Row 3: Leeward ]
Low/Medium Shrubs Tall Evergreens/Timber Deciduous/Fruit Trees
Lifts ground wind Main height (H) engine Inward microclimate
```

1. Row 1: The Windward Outer Row (Low to Medium Dense Shrubs)

• Role: Faces the incoming wind. Its dense, low-branching structure lifts ground-level surface winds, and, in snow-prone climates, catches drifting snow before it reaches farm roads and yards, while preventing wind from blowing underneath tall bare tree trunks.
• Characteristics: Tough, wind-tolerant, multi-stemmed shrubs that branch freely from the base.

2. Row 2: The Middle Canopy Row (Tall Evergreen Conifers and Fast Deciduous Trees)

• Role: Provides the primary vertical height (H) that drives the length of the downwind protected zone.
• Characteristics: Deep-rooted conifers that maintain winter foliage density combined with fast-growing deciduous timber trees.

3. Row 3: The Leeward Inner Row (Deciduous Hardwoods, Nitrogen Fixers, and Food Plants)

• Role: Buffers the transition into the sheltered farmstead, garden, or pasture.
• Characteristics: Slower-growing hardwoods, nitrogen-fixing species that nourish neighboring soil, or productive edible trees (such as hazelnuts, elderberries, and fruit trees).

Spacing, orientation, and layout guidelines

Careful layout and site alignment prevent structural failure and wind gaps:

```
+-----------------------------------------------------------------------+

+-------------------+-----------------------+---------------------------+

+-------------------+-----------------------+---------------------------+

+-------------------+-----------------------+---------------------------+
```

• Orientation: Align the long axis of the windbreak perpendicular (at a 90-degree angle) to the prevailing direction of damaging seasonal winds. Do not assume a compass quarter — work yours out from a local wind rose or long-term met records, since it varies by hemisphere, coastline and season.
• Avoiding Wind Funnels: Never leave an open gap or roadway cutting straight through the center of a windbreak. Wind forces its way through narrow openings at accelerated velocities (the Venturi effect). If vehicle access is required, design an angled, S-curved driveway entrance or install an overlapping baffle row.
• Staggered Layout: Offset trees in adjacent rows so that trees in Row 2 align with the gaps between trees in Row 1.

Recommended windbreak tree and shrub species by climate

Check every species against your national and state invasive-species lists before planting; several of the tough, fast species used for shelter are weeds outside their native range. Select species proven to handle continuous mechanical wind stress in your region:

In cool temperate climates:

• Windward Shrubs: Siberian peashrub (Caragana arborescens), rugosa rose (Rosa rugosa), sea buckthorn (Hippophae rhamnoides - suckers vigorously, provide containment), common lilac (Syringa vulgaris), serviceberry (Amelanchier spp.), and red-osier dogwood (Cornus sericea).
• Tall Canopy Trees: White spruce (Picea glauca), Norway spruce (Picea abies), Scots pine (Pinus sylvestris), Austrian pine (Pinus nigra), hybrid poplars (Populus spp.), and Monterey cypress (Cupressus macrocarpa - mild-maritime climates).
• Leeward Inner Trees: Black alder (Alnus glutinosa - fixes nitrogen), European hazel (Corylus avellana), and hardy crabapples (Malus spp.).

In subtropical and tropical climates:

• Windward Shrubs: Saltbush (Atriplex spp.), vetiver grass (Chrysopogon zizanioides), pigeon pea (Cajanus cajan), and coprosma (Coprosma repens).
• Tall Canopy Trees: Casuarina / She-oak (Casuarina equisetifolia), lemon-scented gum (Corymbia citriodora), and silk oak (Grevillea robusta).
• Leeward Inner Trees: Moringa (Moringa oleifera), nitrogen-fixing ice cream bean (Inga edulis), tamarind (Tamarindus indica), and dwarf citrus.

For integrated tree design principles, explore our guide on agroforestry.

Planting, weed suppression, and long-term maintenance

Ensuring rapid establishment transforms bare saplings into a functional canopy within 5 to 7 years:

• Weed Suppression (The Critical First 3 Years): Young seedlings cannot compete with aggressive perennial grasses for moisture. Install wide strips of woven polypropylene weed barrier fabric along each row, or maintain a 10 cm (4 in) layer of wood chip mulch kept clear of weed growth. For soil coverage ideas, see drought-tolerant ground cover.
• Establishment Irrigation: Provide supplemental drip irrigation during the first two growing seasons to encourage deep root anchoring.
• Livestock Exclusion: Erect sturdy fencing along both sides of the shelterbelt. Grazing livestock (cattle, sheep, horses, goats) will browse leader shoots, strip bark, and compact the root zone, permanently ruining the windbreak's lower density.
• Homestead Integration: Learn how shelterbelts integrate with land planning in our guide on what is homesteading.
