Key takeaways

  • Level swales hold water static on a 0% contour behind a berm, whereas Yeomans Keyline ripping runs slightly off-contour (0.5–2% grade) to shift moisture laterally from wet valleys onto dry ridges.
  • Yeomans' Scale of Permanence puts Climate and Landform first and Soil 8th—water routing and farm access must precede fencing, orchards, and biological soil building.
  • True Keyline subsoiling steps progressively across 3 years (~11 cm at 30 cm spacing in Year 1 down to 18–25+ cm at 90 cm spacing in Year 3), always timed when clay is friable below its plastic limit.
  • On dispersive sodic clays (Emerson Classes 1–2, ESP > 6%), ponded water in unlined swales deflocculates clay and carves hidden subsurface pipes (tunnel erosion) that collapse into gullies.
  • Safe swales require topsoil stripping, scarified berm keyways, lift-compacted 3:1–4:1 berms, an armored level-sill spillway on undisturbed soil with 15–30 cm freeboard, and 48–72 hour drawdown.
Quick answer: P.A. Yeomans' Keyline cultivation and level infiltration swales solve distinct hydrology problems. A permaculture swale is a dead-level (0% slope) trench and compacted berm that traps runoff along one contour to sink a stationary moisture lens for tree belts on 3–15% non-dispersive slopes. True Keyline cultivation runs a non-inversion winged subsoiler (the Yeomans plow) parallel to a valley keyline—intentionally off-contour at a 0.5–2% grade—to move excess moisture out of wet valleys toward dry ridges without obstructing machinery. Never pond water in level swales on dispersive sodic clays (Emerson Classes 1–2) or slopes above 15–18°, where pore pressure triggers rotational slumping and subsurface piping.

Why Keyline Design and Contour Swales Are Not the Same Tool

Land managers frequently treat Keyline design and permaculture swales as interchangeable contour earthworks. That mix-up ruins pastures, blocks tractors, and causes avoidable slope failures. While both slow storm runoff and recharge soil moisture, they rely on opposite geometries, different tools, and strict geotechnical limits.

Created by Australian mining engineer P.A. Yeomans in The Keyline Plan and Water for Every Farm, Keyline design organizes whole-farm planning around an eight-tier Scale of Permanence: (1) Climate, (2) Landform, (3) Water supply, (4) Access roads, (5) Trees, (6) Buildings, (7) Subdivisional fences, and (8) Soil. Yeomans ranked soil 8th deliberately because depth and organic matter build rapidly once landform and water movement are sorted out, as detailed in our permaculture site design guide and small-farm layout guide.

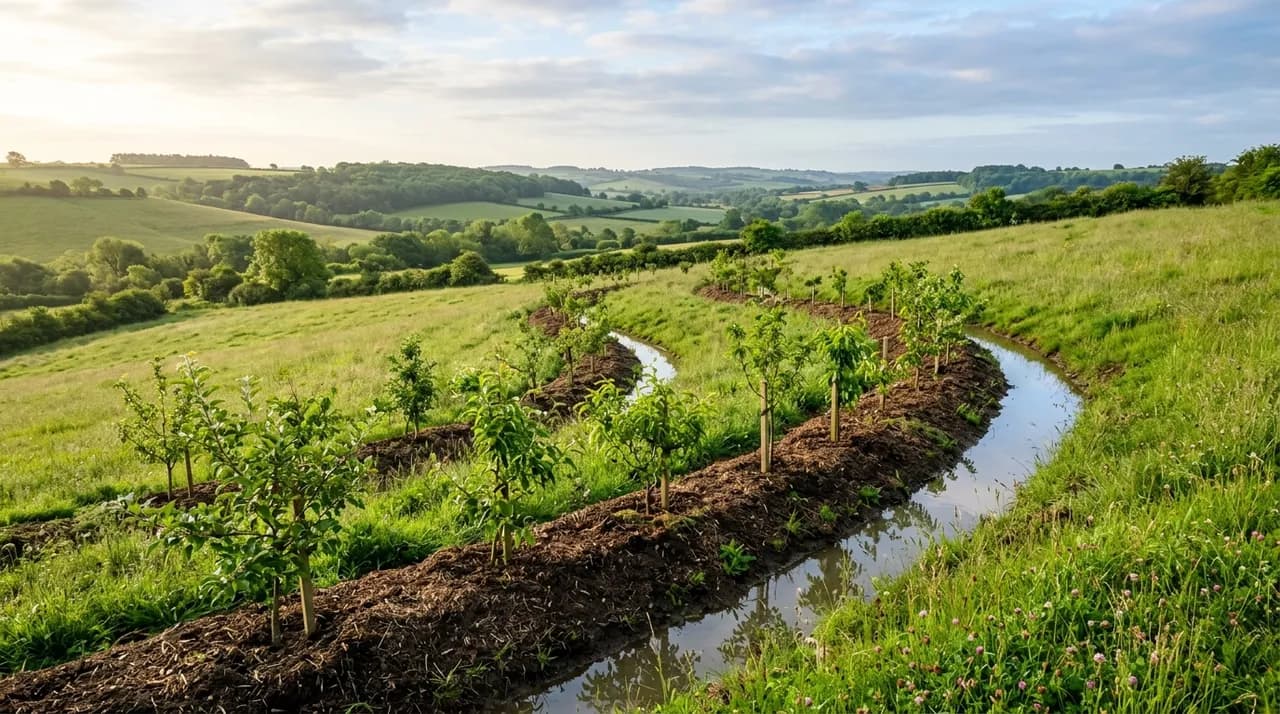

A permaculture swale, by contrast, is a localized trench dug along a single level elevation contour to halt sheet wash and sink water directly beneath perennial tree bands. Deciding which tool fits—or pairing both on one holding—starts with how ridges and valleys steer water.

Technical diagram contrasting P.A. Yeomans off-contour Keyline cultivation—using parallel subsoil rip lines below a valley keypoint to move runoff 0.5 to 2 percent outward toward dry ridges via non-inversion winged shanks at 11 to 25 cm progressive depth—against dead-level permaculture infiltration swales with a compacted 3:1 to 4:1 berm, 15 to 30 cm freeboard, and armored level-sill spillway on undisturbed soil, alongside dispersive sodic clay piping and rotational slope slump warnings.
Image: AgriPure Editorial Illustrations (CC BY 4.0) · Source

Reading Ridge-Valley Geometry, the Keypoint, and Off-Contour Drift

Every undulating hillside alternates between two complementary landforms that respond differently to rain:

  • Primary ridges (interfluves): Convex spurs where contour lines bulge downhill. Water diverges outward off ridges, leaving shallower profiles, drier root zones, and higher wind exposure.
  • Primary valleys (drainage lines): Concave troughs where contour lines bend uphill into the slope. Runoff converges toward valley centers, accumulating deeper soil and higher moisture—alongside severe gully scour risk during intense storms.

Moving down a primary valley from its headwall, Yeomans identified a distinct inflection point called the keypoint, where the steep convex upper valley floor flattens into a gentler concave apron and contour lines suddenly widen apart. A true contour line surveyed horizontally through that keypoint is the Keyline—the natural elevation boundary where gravity-fed storage dams command maximum irrigated acreage downslope and where cultivation geometry anchors the paddock.

Why parallel-to-Keyline ripping moves water from valleys to ridges

On natural rolling topography, valley floors flatten gradually while adjacent ridges protrude farther and steeper downslope. If a tractor cultivates parallel to the master Keyline below it (offset downslope at constant horizontal swath widths using the valley contour as a guideline), each successive pass drops slightly lower relative to true elevation on the ridge than it does inside the valley. The resulting subsoil channels carry a built-in 0.5% to 2% lateral fall away from the damp valley center toward the dry ridge flank.

That off-contour drift reverses natural drought patterns: rainfall entering the valley floor spreads outward along ripped channels to hydrate starved ridge soils instead of pooling in the bottomland. Conversely, plowing parallel above a valley keypoint causes lines to climb slightly toward ridges, or requires switching to a separate ridge-contour guideline on sharp convex spurs so equipment turns stay safe and water distributes evenly across upper slopes—a nuance detailed for smallholders in our quarter-acre keyline primer.

Engineering Comparison: Yeomans Off-Contour Keyline Ripping vs. Level Swales vs. Graded Diversion Banks

Design Parameter

Yeomans Keyline Cultivation

Dead-Level Infiltration Swale

Graded Diversion Bank / Drain

Line Alignment

Parallel to master Keyline or ridge guideline (0.5–2% off-contour)

Strict 0.0% dead-level contour

Surveyed positive fall (0.4–1.0% gradient)

Water Trajectory

Combs excess valley moisture laterally out toward dry ridges

Halts sheet runoff in place; sinks vertically into subsoil lens

Intercepts runoff and conveys it slowly to a dam or grassed waterway

Primary Implement

Yeomans non-inversion winged subsoiler (chisel ripper)

Excavator, mini-digger, backhoe, or hand trenching

Motor grader, bulldozer, or excavator with compaction roller

Machinery Traffic

Fully drivable across the entire paddock

Permanently segments fields; cannot cross berms with implements

Crossable only at armored rock or gentle 6:1 farm crossings

Ideal Slope Range

2% to 18% rolling pastures, orchards, and broadacre alleys

3% to 15% non-dispersive loam or stable clay-loam slopes

2% to 20% duplex clay or high-rainfall catchments

Dispersive Clay Fit

Moderate-high if ripped friable with gypsum; zero standing ponding

Unsafe (high piping and tunnel-collapse hazard)

Safe when compacted, gypsum-treated, and drained without ponding

Primary Crop Role

Pasture renovation, silvopasture, and broad alley cropping

Intensive orchard belts, windbreaks, and food forest design

Catchment runoff routing into keypoint dams or rain gardens

Yeomans Plow Mechanics and the 3-Year Progressive Ripping Plan

Running a conventional moldboard or disc plow off-contour invites sheet erosion because inverted clods expose bare soil. Yeomans engineered a specialized narrow-shank chisel subsoiler—the Yeomans plow—fitted with slim vertical shanks and shallow-angle winged boots (shares) at the tip. As the shank slices through sod, the boot lifts and shatters compacted claypans upward along natural cleavage planes without turning over the A-horizon or pulling sterile subsoil onto the surface.

Attempting a 30 cm (12 in) rip on compacted pasture in one pass wastes tractor horsepower, tears sod, and opens surface crevices that wash out. Instead, Yeomans' Water for Every Farm steps depth down while widening shank spacing over three annual autumn passes, always timed below the clay's plastic limit—friable enough to crumble cleanly rather than rolling into a glossy ribbon.

Never subsoil saturated clay: Pulling shanks through clay wetter than its plastic limit smears trench walls into glazed seals that block water and roots. Dig a spade test to ripping depth first; if clay molds smoothly without cracking, wait until cover growth dries the profile.

Yeomans 3-Year Progressive Keyline Subsoiling Protocol (Compacted Pasture & Claypan Recovery)

Development Stage

Target Ripping Depth

Shank Spacing

Operational Timing & Biological Follow-Up

Year 1 (Conversion Pass)

10–12 cm (4.0–4.7 in), just piercing the plough pan

30 cm (12 in) close spacing

Wait until soil is friable below plastic limit; follow with rotational grazing or deep-root seed (white clover, alfalfa)

Year 2 (Expansion Pass)

13–18 cm (5.0–7.0 in)

60 cm (24 in) medium spacing

Rip parallel to Keyline guideline 12 months later as initial root channels deepen aerobic biology

Year 3 (Full Profile Pass)

18–25+ cm (7.0–10+ in); up to 30 cm on deep loams

90 cm (36 in) wide spacing

Final structural fracture across ridges and valleys; retire annual ripping once earthworms and roots sustain infiltration

Each slot fills with aerated moisture, manure, and sloughed pasture roots after grazing. Multi-year trials (including BC Climate & Agriculture Initiative and UVM compaction studies) confirm winged subsoiling plus living roots deepens A-horizon topsoil—supporting compacted soil recovery and landscape rehydration without fixed berms.

Clay Slump, Dispersive Piping, and Swale Slope Limits

Promotional earthworks videos often recommend digging dead-level infiltration swales anywhere rain falls. In clay-rich soils and sloping terrain, forcing standing water into unlined trenches triggers two distinct geotechnical failures that destroy slopes and neighboring infrastructure: rotational berm slumping and dispersive clay piping (tunnel erosion).

Rotational berm slumping and slope pore-pressure failure

Clay holds substantial strength when partially dry through negative pore-water pressure (matrix suction). When a level swale ponds stormwater for days, infiltrating moisture saturates the downhill fill berm and underlying slip planes. Effective stress drops sharply, apparent cohesion collapses, and the saturated clay mass exceeds its shear limit—slumping downward along a curved rotational slip surface or sliding across an impermeable claypan interface.

Above 15–18° (27–32% slope), gravity shear rises enough that ponding trenches risk hillside mass movement. Below 2% slope, sheet wash barely moves laterally, so linear trenches waste effort compared with rain basins or climate-matched swale sizing.

Dispersive sodic clay piping (tunnel erosion)

Dispersive clays—sodic soils with exchangeable sodium percentage (ESP) above 6% and Emerson Aggregate Classes 1 or 2—look solid dry, yet deflocculate into milky clouds the instant rainwater wets them. Suspended clay particles flush out through desiccation cracks, old root pores, or loose trench backfill.

Because water ponded inside a level swale pushes seepage downhill, dispersive clay carves hidden underground conduits (pipes or tunnels) under the berm. Later, tunnel roofs collapse into potholes and deep gullies—a hazard documented by Tasmanian NRE, WA DPIRD, and Queensland soil manuals.

Run a 2-hour jar dispersion check before digging: Drop three air-dry pea-sized subsoil crumbs gently into rainwater or distilled water without stirring. Clear water after 2 hours (even if crumbs slake into sand-sized grains) indicates stable clay (Emerson Class 3–8). A milky cloud blooming around crumbs within 10–120 minutes signals dispersive clay (Class 1–2): skip ponding swales and treat with agricultural gypsum or graded drainage.

Geotechnical Failure Modes in Swales & Clay Earthworks: Field Triggers and Verified Remedies

Failure Mode

Primary Soil / Slope Trigger

Early Warning Signs

Engineering Prevention & Fix

Dispersive Clay Piping (Tunneling)

Sodic subsoil (Emerson Class 1–2, ESP > 6%) exposed to ponded rainwater

Cloudy runoff emerging downslope of berm; sudden surface potholes above hidden tunnels

Avoid level ponding trenches; switch to 0.4–1% graded banks, incorporate gypsum (CaSO4), compact clay in lifts, and rip/re-compact existing tunnels

Rotational / Translational Slump

Steep slopes >15–18° (27–32%), shallow bedrock/claypan, or loose uncompacted berms

Crescent tension cracks along berm crest, outward bulging toe, tilted young trees

Restrict swales to 3–15% slopes; compact berms in 15–20 cm lifts at 3:1–4:1 batters; shift steep hillsides to Keyline ripping or narrow graded benches

Berm-Base Seam Piping

Dumping loose subsoil directly onto intact grassy topsoil during berm build

Clean water jets seeping from the base of the downhill berm during medium storms

Strip topsoil aside first, scarify (key in) undisturbed subsoil under the berm footprint, compact clay lifts, then cap with reserved topsoil

Anaerobic Stagnation & Mosquitoes

Tight Hydrologic Group D clay holding standing water beyond 48–72 hours

Foul sulfur odor, dying berm tree roots, mosquito larvae in persistent trench pools

Run a percolation test first; convert tight clay trenches into flow-through vegetated bioswales or underdrained rain gardens

Sandy Berm Collapse

Coarse deep sand (>80% sand) with high infiltration and near-zero cohesion

Trench traps zero overland runoff; uncompacted sand mounds slump flat in first heavy rain

Skip linear swales; use deep organic mulch, sunken waffle beds, or broad compost basins to hold rainfall where it drops

Always pair soil tests with infrastructure setbacks. Keep infiltration swales at least 3 to 5 m (10 to 16 ft) upslope of foundations, retaining walls, septic drainfields, and road cuts so expanding clay cannot lift footings—detailed in our swale foundation setback guide and mosquito prevention checklist.

Engineering a Level Infiltration Swale (When Site Conditions Fit)

On a gentle 3–15% slope that passes a 24–48 hour percolation check, shows clear non-dispersive water in a crumb test, and sits clear of foundations, a contour swale reliably hydrates tree rows. Follow six construction steps instead of piling loose spoil:

  1. Survey an exact 0% contour: Walk the slope with a rotary laser, water level, or calibrated A-frame per our contour surveying guide. Stake every 3–5 m, keeping deviations under 1 cm so water never pools at a low sag.
  2. Strip topsoil and scarify the berm keyway: Scrape living topsoil aside first, then tooth-scarify bare subsoil under the berm footprint so compacted fill locks into parent earth without a buried grass seam.
  3. Excavate a flat-floor basin: Cut 40–60 cm wide by 25–35 cm deep in gardens (1.0–1.8 m wide on farms), leaving the trench bottom flat and uncompacted for steady infiltration.
  4. Compact the berm in lifts: Spread subsoil downhill in 15–20 cm damp lifts, tracking or tamping each lift while shaping 3:1 to 4:1 side batters instead of steep pyramids.
  5. Cut an armored level-sill spillway (15–30 cm freeboard): Carve a wide, dead-level exit into undisturbed solid earth at one or both ends—never loose berm fill—set 15–30 cm (6–12 in) below the settled crest and armored with rock or dense sod.
  6. Cap, mulch, and plant immediately: Pull topsoil back over the berm, lay 10–15 cm mulch, and plant vetiver on spillways alongside white clover, comfrey, tagasaste, leucaena, and quickstick.

Mature swales shift by year five as silt accumulates and tree roots thicken. Inspect spillways annually after storms using our year-seven swale maintenance guide, pairing slope stabilization plants with berm nitrogen-fixing guilds.

Integrating Keyline Patterns, Swales, and Agroforestry on One Property

Effective farms assign Yeomans Keyline cultivation and contour swales to the exact landforms where each performs best. Open pastures and broad alleys benefit from parallel off-contour Keyline ripping that hydrates ridges without blocking equipment—supporting agrosilvicultural and silvopastoral classification systems and diversified agroforestry.

Near homesteads on non-dispersive 3–15% slopes, short level swales (built on contour) feed orchard belts of white mulberry, black elderberry, and casuarina. On dispersive clay or steeper slopes, skip ponding trenches, route storm runoff along 0.4–1.0% gypsum-treated diversion banks to a keypoint pond, and focus on clay structure building.
